Step1: Product

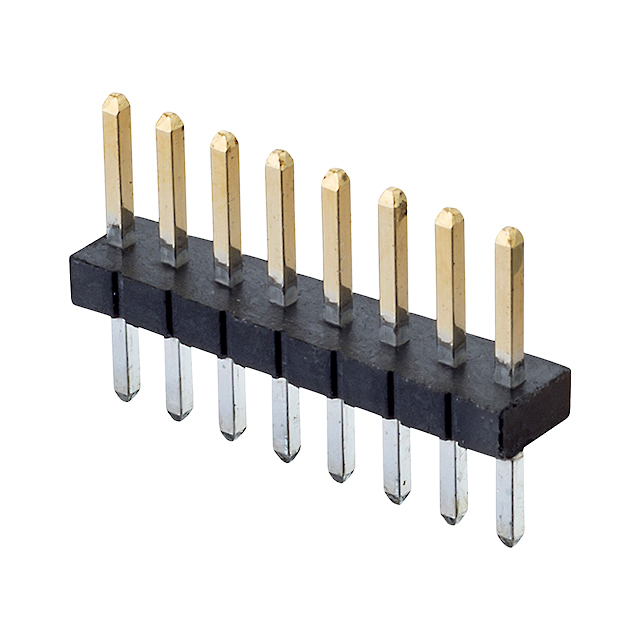

Harwin Inc. M50-3530842
Images are for reference only
Manufacturer
Manufacturer No
M50-3530842
Quantity
417
Availability
In Stock
Packaging
Box
Description
CONN HEADER VERT 8POS 1.27MM
Detailed Description
Connector Header Through Hole 8 position 0.050" (1.27mm)
Datasheet
Payment
Delivery
Mfr
Harwin Inc.
Style
Board to Board
Series
Archer M50
Features
-
Packaging
Box
Shrouding
Unshrouded
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
-
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.039" (1.00mm)
Ingress Protection
-
Base Product Number
M50-353
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
8
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.091" (2.30mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
3.10mm, 4.60mm, 5.40mm
Overall Contact Length
0.248" (6.30mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.118" (3.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board |
| Series | Archer M50 |
| Features | - |
| Packaging | Box |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.039" (1.00mm) |
| Ingress Protection | - |
| Base Product Number | M50-353 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 8 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.091" (2.30mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 3.10mm, 4.60mm, 5.40mm |
| Overall Contact Length | 0.248" (6.30mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | - |
