Harwin Inc. M20-8760342R
Images are for reference only
Manufacturer
Manufacturer No
M20-8760342R
Quantity
398
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description

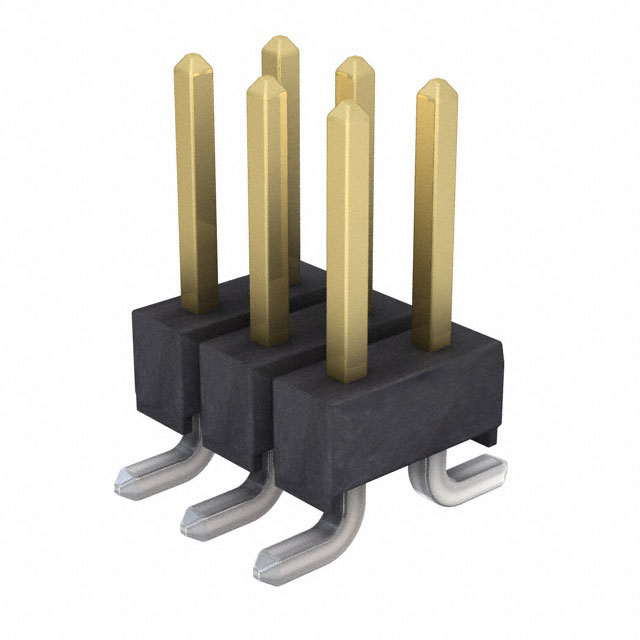

CONN HEADER SMD 6POS 2.54MM
Detailed Description
Connector Header Surface Mount 6 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
M20
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Unshrouded
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header, Cuttable
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.100" (2.54mm)
Ingress Protection
-
Base Product Number
M20-876
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
6
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
3A per Contact
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
11.53mm, 12.23mm, 12.63mm, 18.13mm
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
0.228" (5.80mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | M20 |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header, Cuttable |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Ingress Protection | - |
| Base Product Number | M20-876 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 11.53mm, 12.23mm, 12.63mm, 18.13mm |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.228" (5.80mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
