Step1: Product

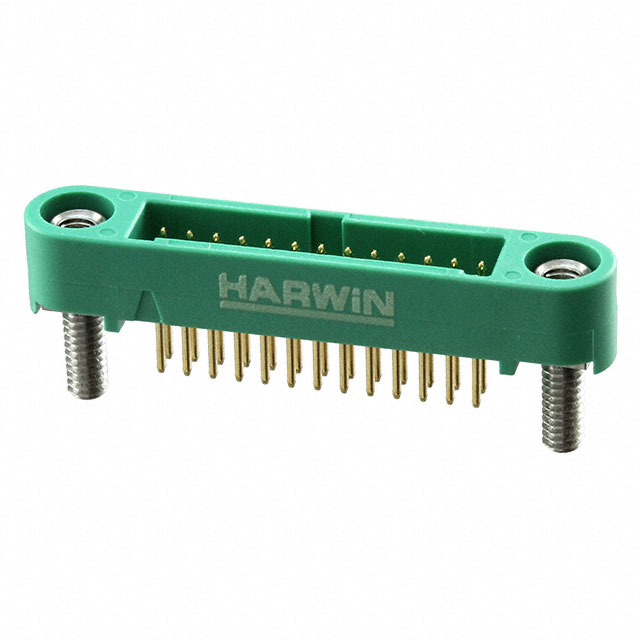

Harwin Inc. G125-MV12605M2P
Images are for reference only
Manufacturer
Manufacturer No
G125-MV12605M2P
Quantity
17
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 26POS 1.25MM
Detailed Description
Connector Header Through Hole 26 position 0.049" (1.25mm)
Datasheet
Payment
Delivery
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Gecko SL
Features
Mating Flange, Mounting Flange, Pick and Place
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Threaded
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
450V
Contact Material
Phosphor Bronze
Insulation Color
Green
Insulation Height
0.193" (4.90mm)
Ingress Protection
-
Base Product Number
G125-MV1
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Number of Positions
26
Row Spacing - Mating
0.049" (1.25mm)
Contact Finish - Post
-
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
2A per Contact
Operating Temperature
-65°C ~ 150°C
Mated Stacking Heights
7.35mm, 7.45mm, 7.8mm
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Gecko SL |
| Features | Mating Flange, Mounting Flange, Pick and Place |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Threaded |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 450V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Green |
| Insulation Height | 0.193" (4.90mm) |
| Ingress Protection | - |
| Base Product Number | G125-MV1 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Number of Positions | 26 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Contact Finish - Post | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 2A per Contact |
| Operating Temperature | -65°C ~ 150°C |
| Mated Stacking Heights | 7.35mm, 7.45mm, 7.8mm |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
