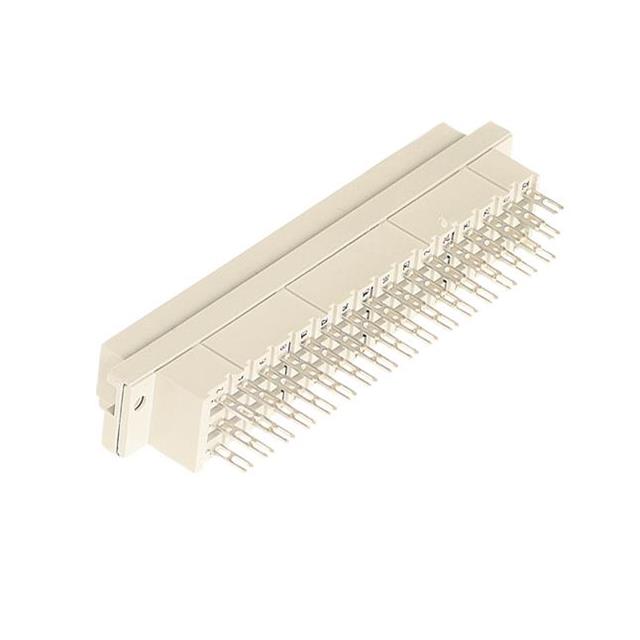

HARTING 09052482823
Images are for reference only
Manufacturer
Manufacturer No
09052482823
Packaging
Bulk
Description
CONN DIN RCPT 48POS
Detailed Description
48 Position Din Connector Receptacle, Female Sockets Gold Panel Mount
Datasheet
Payment
Delivery
Pitch
0.200" (5.08mm)
Style
E
Series
DIN 41612
Features
-
Packaging
Bulk
Termination
Solder Lug
Level, Class
1
Manufacturer
HARTING
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Number of Rows
3
Base Product Number
09052482
Number of Positions
48
Current Rating (Amps)
6A
Material - Insulation
Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature
-55°C ~ 125°C
Contact Finish Thickness
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.200" (5.08mm) |
| Style | E |
| Series | DIN 41612 |
| Features | - |
| Packaging | Bulk |
| Termination | Solder Lug |
| Level, Class | 1 |
| Manufacturer | HARTING |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 3 |
| Base Product Number | 09052482 |
| Number of Positions | 48 |
| Current Rating (Amps) | 6A |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish Thickness | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
