Step1: Product

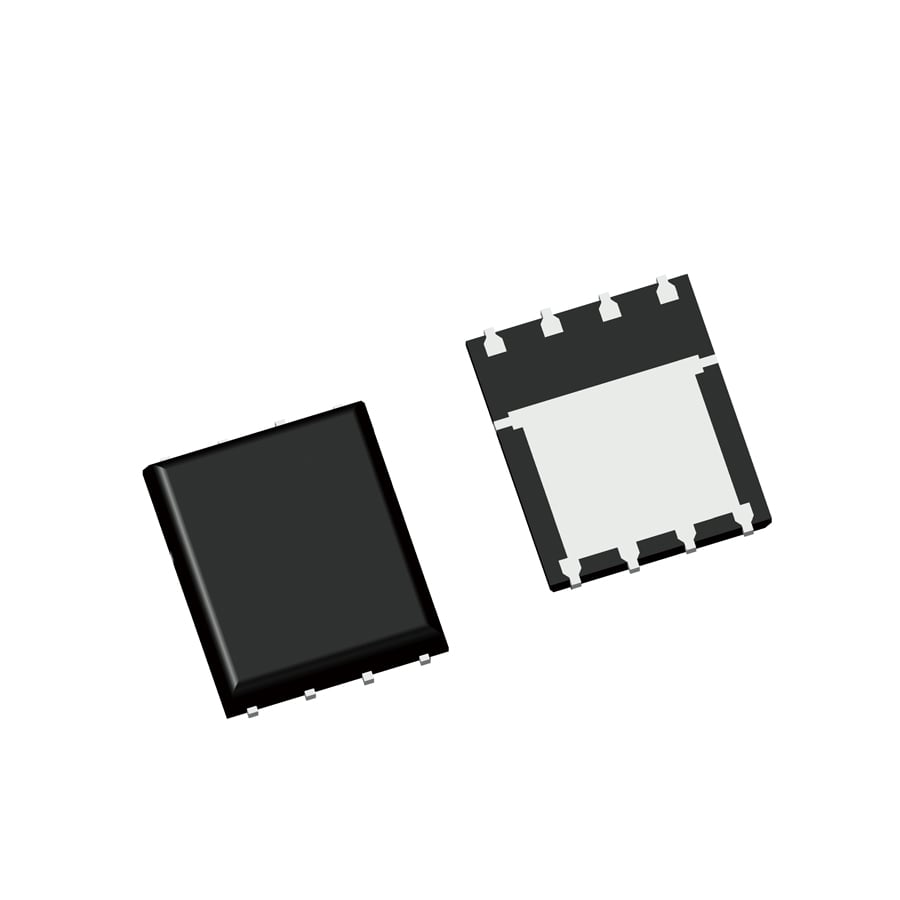

Guangdong Inmark Electronics Co., Ltd. MOT6512G
Images are for reference only
Manufacturer
Manufacturer No
MOT6512G
Packaging
Tape & Reel (TR)
Description
MOSFET N-CH 60V 55A 8.6m PDFN5x
Detailed Description
N-Channel 60 V 55A 48W Surface Mount 8-PDFN (5x6)
Datasheet
Payment
Delivery
Mfr
Guangdong Inmark Electronics Co., Ltd.
Grade
-
Series
-
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
-
Vgs(th) (Max) @ Id
2.5V @ 250µA
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
10mOhm @ 20A, 10V
Power Dissipation (Max)
48W
Supplier Device Package
8-PDFN (5x6)
Gate Charge (Qg) (Max) @ Vgs
47 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
2400 pF @ 20 V
Current - Continuous Drain (Id) @ 25°C
55A
| Attribute | Value |
|---|---|
| Mfr | Guangdong Inmark Electronics Co., Ltd. |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 20A, 10V |
| Power Dissipation (Max) | 48W |
| Supplier Device Package | 8-PDFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 20 V |
| Current - Continuous Drain (Id) @ 25°C | 55A |
