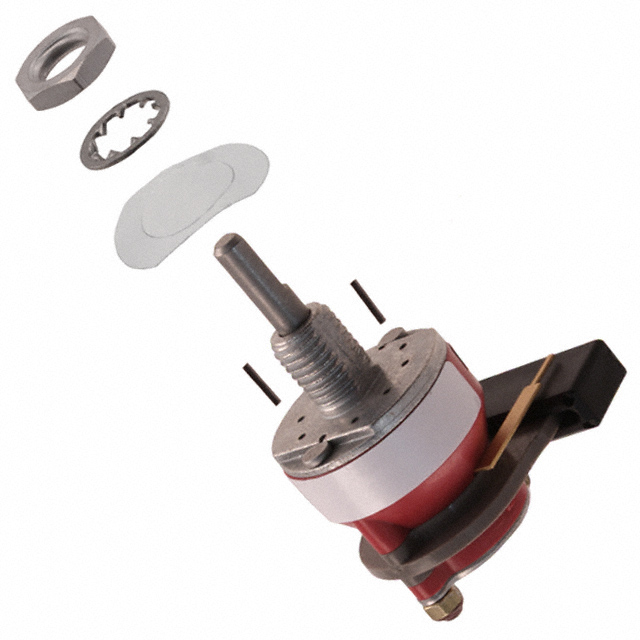

Grayhill Inc. 71ADF36-01-2-AJN
Images are for reference only
Manufacturer
Manufacturer No
71ADF36-01-2-AJN
Availability
In Stock
Packaging
Bulk
Description
SWITCH ROTARY 2-5POS 250MA 115V
Detailed Description
Rotary Switch 2 ~ 5 Position DP5T 250mA (AC/DC) 115 VAC Panel Mount, Through Hole, Right Angle
Datasheet
Payment
Delivery
Series
71
Features
-
Packaging
Bulk
Index Stops
Adjustable
Manufacturer
Grayhill Inc.
Actuator Type
Flatted (3.17mm Dia)
Mounting Type
Panel Mount, Through Hole, Right Angle
Angle of Throw
36°
Contact Finish
-
Contact Timing
Non-Shorting (BBM)
Actuator Length
9.53mm
Number of Decks
1
Circuit per Deck
DP5T
Contact Material
Silver Alloy
Termination Style
PC Pin
Depth Behind Panel
19.33mm
Base Product Number
71ADF36
Number of Positions
2 ~ 5
Voltage Rating - AC
115 V
Voltage Rating - DC
30 V
Current Rating (Amps)
250mA (AC/DC)
Panel Cutout Dimensions
-
Number of Poles per Deck
2
| Attribute | Value |
|---|---|
| Series | 71 |
| Features | - |
| Packaging | Bulk |
| Index Stops | Adjustable |
| Manufacturer | Grayhill Inc. |
| Actuator Type | Flatted (3.17mm Dia) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Angle of Throw | 36° |
| Contact Finish | - |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 9.53mm |
| Number of Decks | 1 |
| Circuit per Deck | DP5T |
| Contact Material | Silver Alloy |
| Termination Style | PC Pin |
| Depth Behind Panel | 19.33mm |
| Base Product Number | 71ADF36 |
| Number of Positions | 2 ~ 5 |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 250mA (AC/DC) |
| Panel Cutout Dimensions | - |
| Number of Poles per Deck | 2 |
