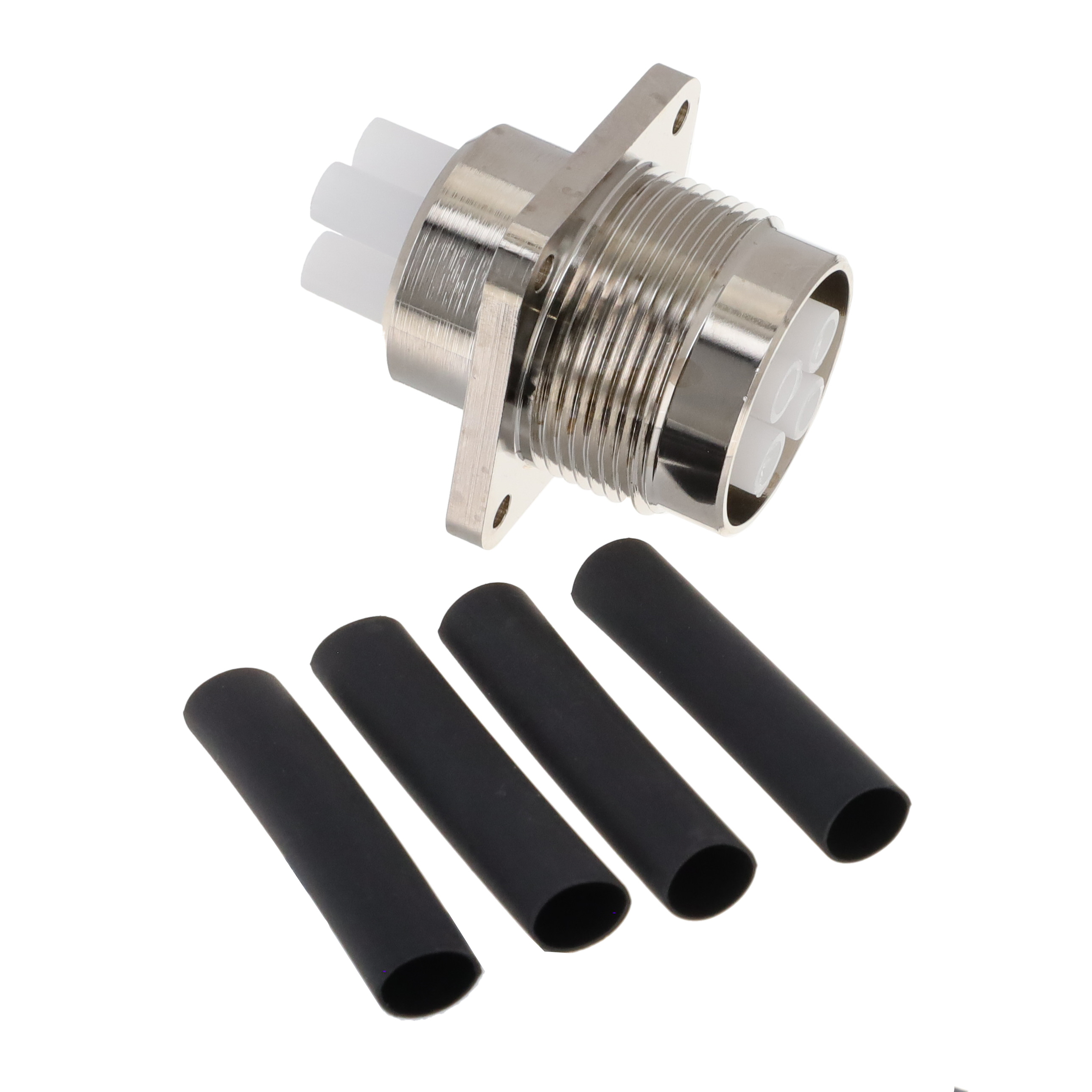

GES High Voltage 1070-RP2-010-04N14-FS
Images are for reference only
Manufacturer
Manufacturer No
1070-RP2-010-04N14-FS
Packaging
Bag
Description
MC407-RP, RECEPT., 10 KVDC, 4P
Detailed Description
4 Position Circular Connector Receptacle, Female Pins Crimp or Solder
Datasheet
Payment
Delivery
Mfr
GES High Voltage
Color
Silver, White
Grade
-
Series
MC
Features
High Voltage Connector
Packaging
Bag
Shielding
-
Orientation
Keyed
Termination
Crimp or Solder
Applications
Industrial, Medical, Testing Equipment & Measurement
Shell Finish
Nickel
Cable Opening
0.157" (4.00mm)
Mounting Type
Panel Mount
Qualification
-
Connector Type
Receptacle, Female Pins
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
10000VDC
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
-
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
IP61 - Dust Tight
Number of Positions
4
Shell Size - Insert
-
Current Rating (Amps)
13A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
-
Backshell Material, Plating
Brass, Nickel
Material Flammability Rating
UL94 HB
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | GES High Voltage |
| Color | Silver, White |
| Grade | - |
| Series | MC |
| Features | High Voltage Connector |
| Packaging | Bag |
| Shielding | - |
| Orientation | Keyed |
| Termination | Crimp or Solder |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Shell Finish | Nickel |
| Cable Opening | 0.157" (4.00mm) |
| Mounting Type | Panel Mount |
| Qualification | - |
| Connector Type | Receptacle, Female Pins |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 10000VDC |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | - |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | IP61 - Dust Tight |
| Number of Positions | 4 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 13A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | - |
| Backshell Material, Plating | Brass, Nickel |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Mating | - |
