Step1: Product

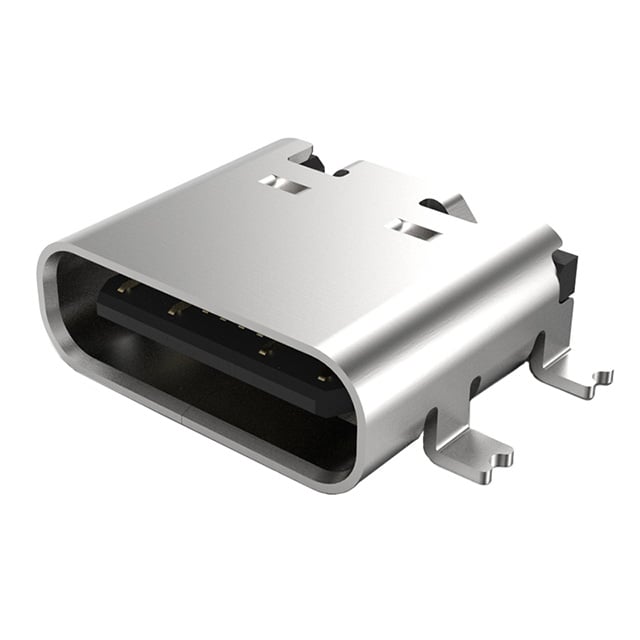

GCT USB4110-GF-A
Images are for reference only
Manufacturer
Manufacturer No
USB4110-GF-A
Quantity
987
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCP USB2.0 TYP C 24P SMD RA
Detailed Description
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle
Datasheet
Payment
Delivery
Gender
Receptacle
Series
USB4110
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Termination
Solder
Manufacturer
GCT
Mating Cycles
20000
Mounting Type
Surface Mount, Right Angle
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Specifications
USB 2.0
Number of Ports
1
Voltage - Rated
48VDC
Insulation Color
Black
Mounting Feature
Horizontal
Ingress Protection
-
Number of Contacts
24 (16+8 Dummy)
Base Product Number
USB4110
Current Rating (Amps)
5A
Operating Temperature
-40°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | USB4110 |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | GCT |
| Mating Cycles | 20000 |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Specifications | USB 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 48VDC |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Ingress Protection | - |
| Number of Contacts | 24 (16+8 Dummy) |
| Base Product Number | USB4110 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -40°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
