Step1: Product

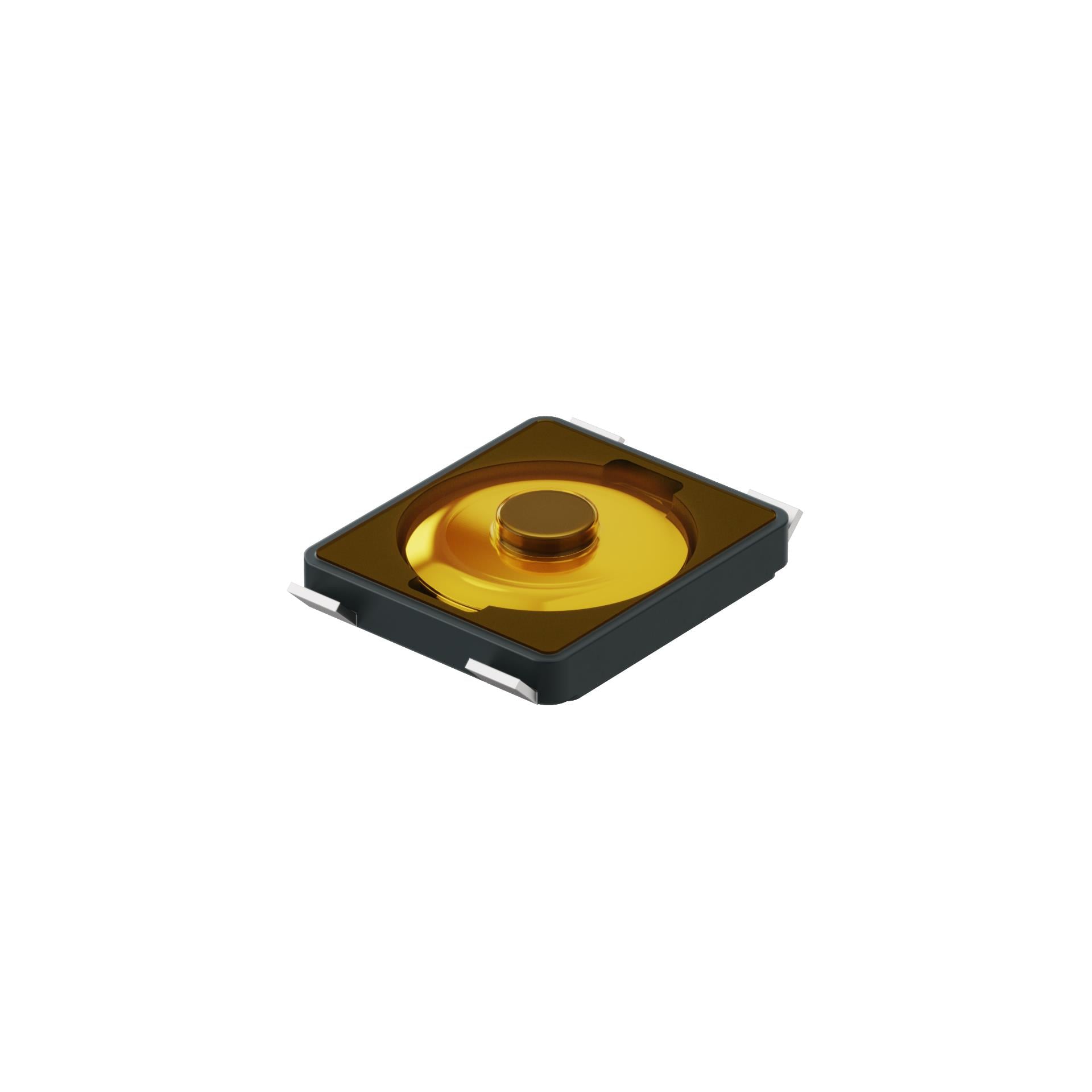

GCT SWT5005-006510JSA
Images are for reference only
Manufacturer
Manufacturer No
SWT5005-006510JSA
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TACTILE SWITCH, SPST-NO, 3.0 X 2
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
Payment
Delivery
Mfr
GCT
Series
SWT5005
Circuit
SPST-NO
Outline
3.00mm x 2.60mm
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.20mm
Mechanical Life
50,000 Cycles
Operating Force
100gf
Switch Function
Off-Mom
Actuator Material
Liquid Crystal Polymer (LCP)
Termination Style
J Lead
Ingress Protection
IP65 - Dust Tight, Water Resistant
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 12VDC
Illumination Type, Color
-
Actuator Length, Right Angle
-
Illumination Voltage (Nominal)
-
Actuator Height off PCB, Vertical
0.65mm
| Attribute | Value |
|---|---|
| Mfr | GCT |
| Series | SWT5005 |
| Circuit | SPST-NO |
| Outline | 3.00mm x 2.60mm |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.20mm |
| Mechanical Life | 50,000 Cycles |
| Operating Force | 100gf |
| Switch Function | Off-Mom |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Termination Style | J Lead |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 0.65mm |
