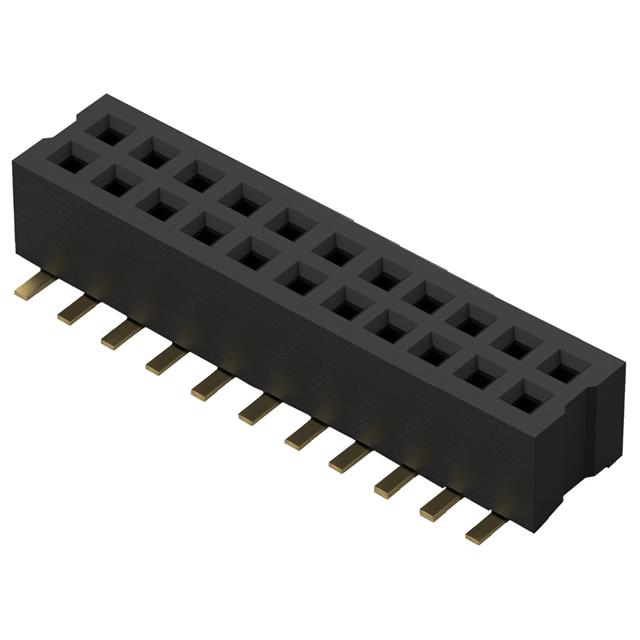

GCT BC085-22-A-0390-L-D
Images are for reference only
Manufacturer
Manufacturer No
BC085-22-A-0390-L-D
Availability
In Stock
Packaging
Tube
Description
22W, 1.0MM PITCH SOCKET, DIL, SM
Detailed Description
22 Position Receptacle, Bottom or Top Entry Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet
Payment
Delivery
Mfr
GCT
Style
Board to Board
Series
BC085
Features
Pick and Place
Packaging
Tube
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom or Top Entry
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
250VAC/DC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.089" (2.26mm)
Ingress Protection
-
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
22
Row Spacing - Mating
0.039" (1.00mm)
Contact Finish - Post
Gold
Contact Length - Post
-
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | GCT |
| Style | Board to Board |
| Series | BC085 |
| Features | Pick and Place |
| Packaging | Tube |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom or Top Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.089" (2.26mm) |
| Ingress Protection | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 22 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
