Freescale Semiconductor MC07XSF517EK

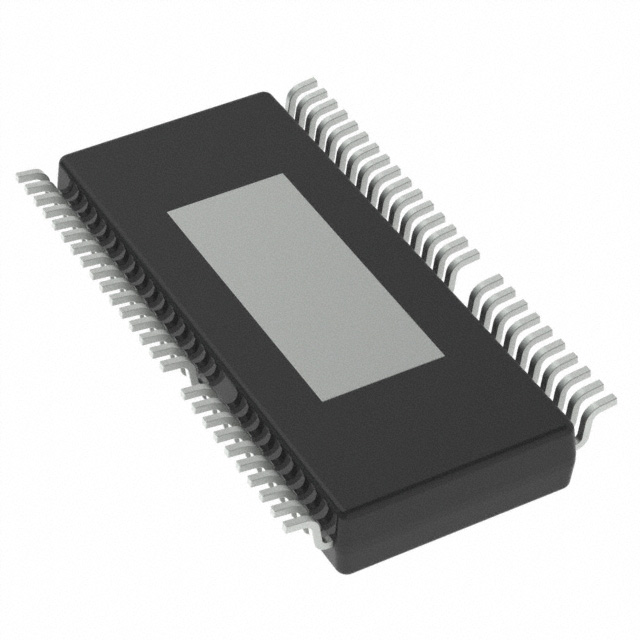

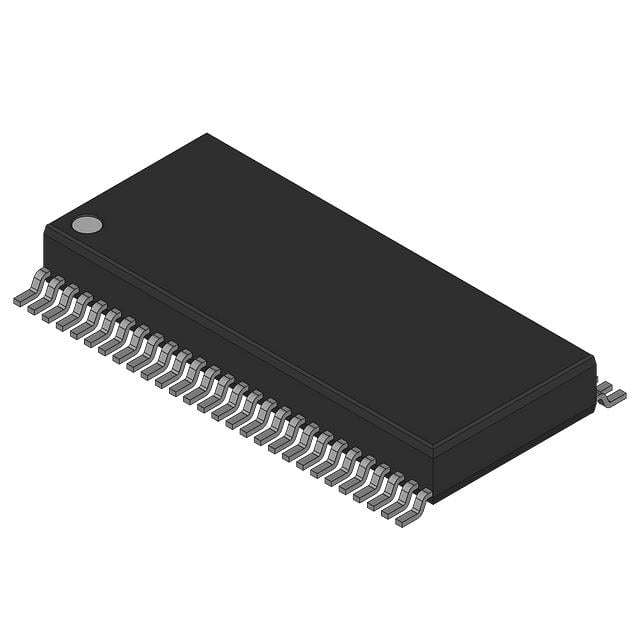

Images are for reference only
Manufacturer
Manufacturer No
MC07XSF517EK
Package
54-SSOP (0.295", 7.50mm Width) Exposed Pad
Packaging
Bulk
Description
HIGH-SIDE SWITCH, 18V, TRIPLE 7M
Detailed Description
Power Switch/Driver 1:1 N-Channel 5.5A, 11A 54-HSOP
Datasheet
Payment
Delivery
Mfr
Freescale Semiconductor
Series
-
Features
Internal PWM
Interface
SPI
Packaging
Bulk
Input Type
CMOS
Output Type
N-Channel
Switch Type
General Purpose
Rds On (Typ)
7mOhm, 17mOhm
Mounting Type
Surface Mount
Package / Case
54-SSOP (0.295", 7.50mm Width) Exposed Pad
Voltage - Load
7V ~ 18V
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature
Number of Outputs
6
Base Product Number
MC07XSF517
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 125°C (TA)
Current - Output (Max)
5.5A, 11A
Supplier Device Package
54-HSOP
Voltage - Supply (Vcc/Vdd)
4.5V ~ 5.5V
| Attribute | Value |
|---|---|
| Mfr | Freescale Semiconductor |
| Series | - |
| Features | Internal PWM |
| Interface | SPI |
| Packaging | Bulk |
| Input Type | CMOS |
| Output Type | N-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 7mOhm, 17mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 54-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Voltage - Load | 7V ~ 18V |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Number of Outputs | 6 |
| Base Product Number | MC07XSF517 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Output (Max) | 5.5A, 11A |
| Supplier Device Package | 54-HSOP |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
