Step1: Product

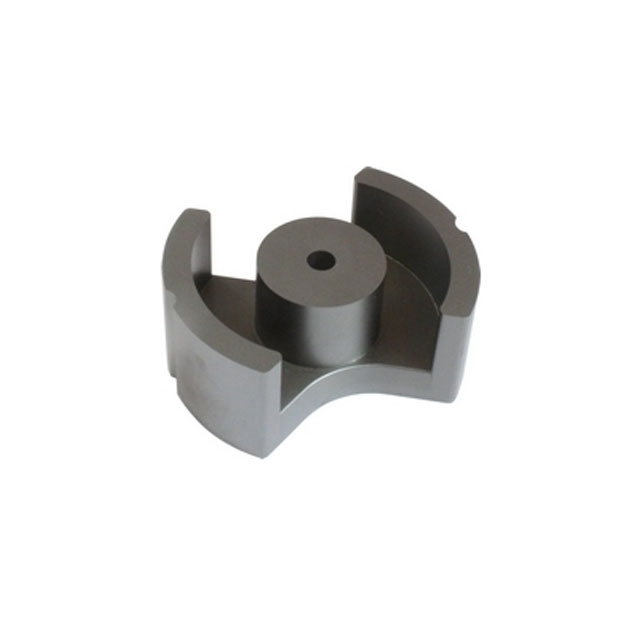

Ferroxcube PM114/93-3C90
Images are for reference only
Manufacturer
Manufacturer No
PM114/93-3C90
Availability
In Stock
Packaging
Bulk
Description
Ferrite Misc
Detailed Description
Uncoated 3C90 Ferrite Core PM Type Length Width Diameter 1.831" (46.50mm) Height
Datasheet
Payment
Delivery
Gap
Ungapped
Width
-
Finish
Uncoated
Height
1.831" (46.50mm)
Length
-
Series
-
Diameter
-
Material
3C90
Core Type
PM
Packaging
Bulk
Tolerance
±25%
Manufacturer
Ferroxcube
Inductance Factor (Al)
20 µH
Supplier Device Package
PM 114 x 93
Effective Area (Ae) mm²
1720.0
Effective Length (le) mm
200.0
Core Factor (ΣI/A) mm⁻¹
0.116
Effective Permeability (µe)
1850.0
Effective Magnetic Volume (Ve) mm³
344000.0
Minimum Core Cross Section (Amin) mm²
1380.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | - |
| Finish | Uncoated |
| Height | 1.831" (46.50mm) |
| Length | - |
| Series | - |
| Diameter | - |
| Material | 3C90 |
| Core Type | PM |
| Packaging | Bulk |
| Tolerance | ±25% |
| Manufacturer | Ferroxcube |
| Inductance Factor (Al) | 20 µH |
| Supplier Device Package | PM 114 x 93 |
| Effective Area (Ae) mm² | 1720.0 |
| Effective Length (le) mm | 200.0 |
| Core Factor (ΣI/A) mm⁻¹ | 0.116 |
| Effective Permeability (µe) | 1850.0 |
| Effective Magnetic Volume (Ve) mm³ | 344000.0 |
| Minimum Core Cross Section (Amin) mm² | 1380.0 |
