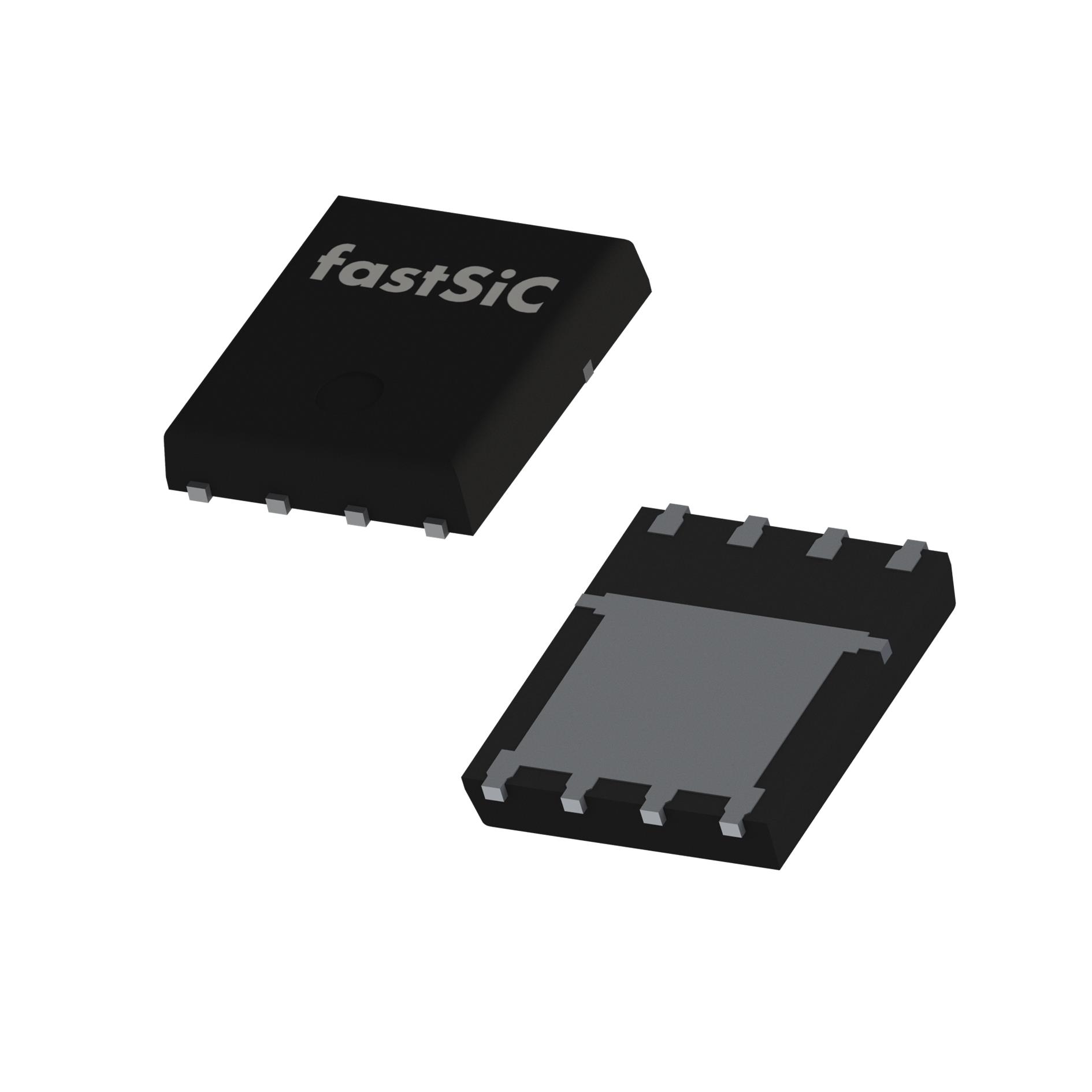

fastSiC FL06320B
Mfr
fastSiC
Grade
-
Series
Lightning
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
15V
Technology
SiCFET (Silicon Carbide)
Mounting Type
Surface Mount
Qualification
-
Package / Case
9-PowerTDFN
Vgs(th) (Max) @ Id
1.5V @ 4mA (Typ)
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
420mOhm @ 2A, 15V
Power Dissipation (Max)
41W (Tc)
Supplier Device Package
8-PQFN (5x6), Power56
Gate Charge (Qg) (Max) @ Vgs
12.9 nC @ 400 V
Drain to Source Voltage (Vdss)
650 V
Input Capacitance (Ciss) (Max) @ Vds
344 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)
12V, 15V
Current - Continuous Drain (Id) @ 25°C
8.8A (Tc)
| Attribute | Value |
|---|---|
| Mfr | fastSiC |
| Grade | - |
| Series | Lightning |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | 15V |
| Technology | SiCFET (Silicon Carbide) |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 9-PowerTDFN |
| Vgs(th) (Max) @ Id | 1.5V @ 4mA (Typ) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 420mOhm @ 2A, 15V |
| Power Dissipation (Max) | 41W (Tc) |
| Supplier Device Package | 8-PQFN (5x6), Power56 |
| Gate Charge (Qg) (Max) @ Vgs | 12.9 nC @ 400 V |
| Drain to Source Voltage (Vdss) | 650 V |
| Input Capacitance (Ciss) (Max) @ Vds | 344 pF @ 400 V |
| Drive Voltage (Max Rds On, Min Rds On) | 12V, 15V |
| Current - Continuous Drain (Id) @ 25°C | 8.8A (Tc) |
