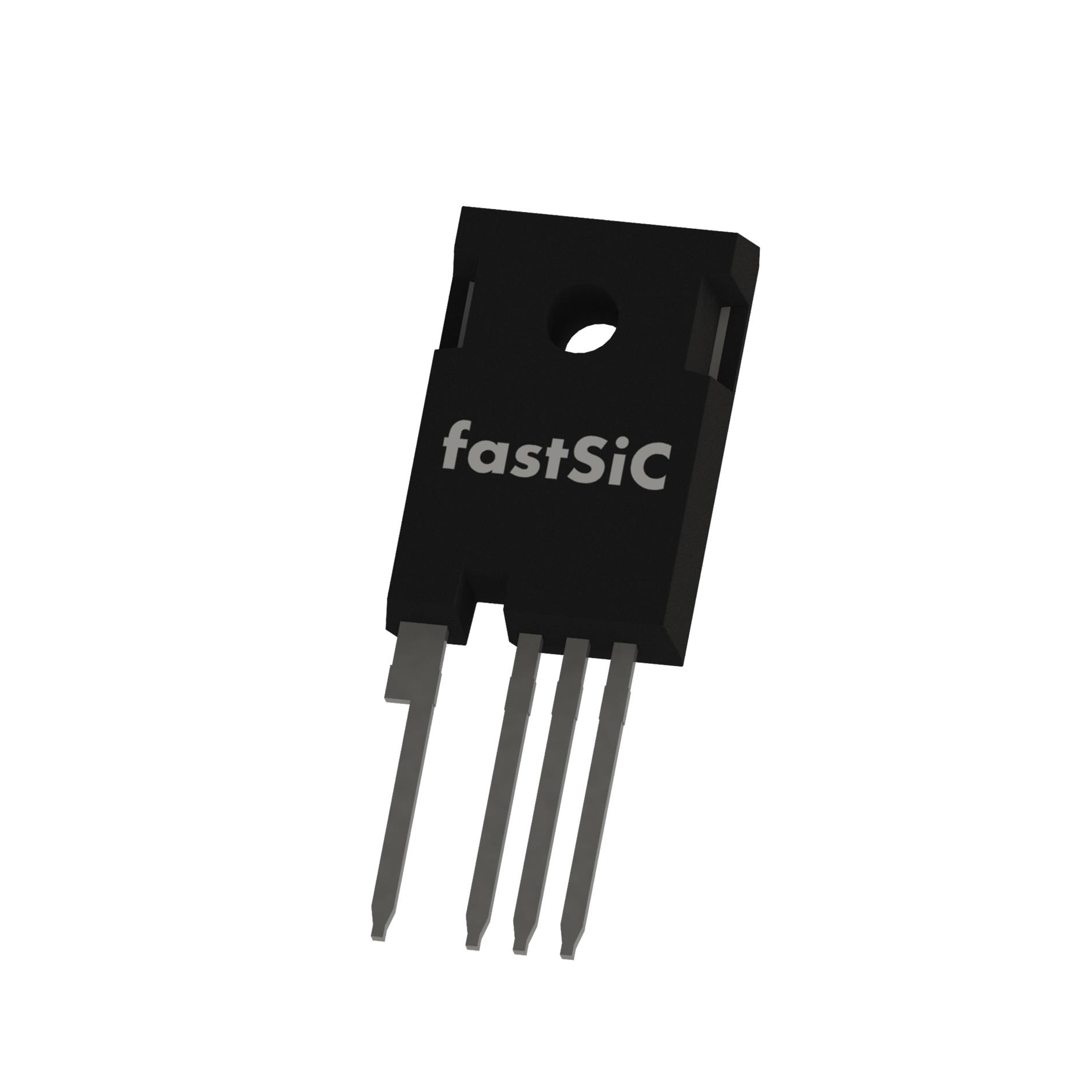

fastSiC FF12040QA
Mfr
fastSiC
Grade
-
Series
Falcon
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
+18V, -8V
Technology
SiCFET (Silicon Carbide)
FET Feature
-
Mounting Type
Through Hole
Qualification
-
Package / Case
TO-247-4
Vgs(th) (Max) @ Id
2.2V @ 40mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
56mOhm @ 20A, 18V
Power Dissipation (Max)
278W (Tc)
Supplier Device Package
TO-247-4L
Gate Charge (Qg) (Max) @ Vgs
117 nC @ 15 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
3129 pF @ 800 V
Drive Voltage (Max Rds On, Min Rds On)
18V
Current - Continuous Drain (Id) @ 25°C
54A (Tc)
| Attribute | Value |
|---|---|
| Mfr | fastSiC |
| Grade | - |
| Series | Falcon |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | +18V, -8V |
| Technology | SiCFET (Silicon Carbide) |
| FET Feature | - |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-247-4 |
| Vgs(th) (Max) @ Id | 2.2V @ 40mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 20A, 18V |
| Power Dissipation (Max) | 278W (Tc) |
| Supplier Device Package | TO-247-4L |
| Gate Charge (Qg) (Max) @ Vgs | 117 nC @ 15 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3129 pF @ 800 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Current - Continuous Drain (Id) @ 25°C | 54A (Tc) |
