fastSiC FF06320B

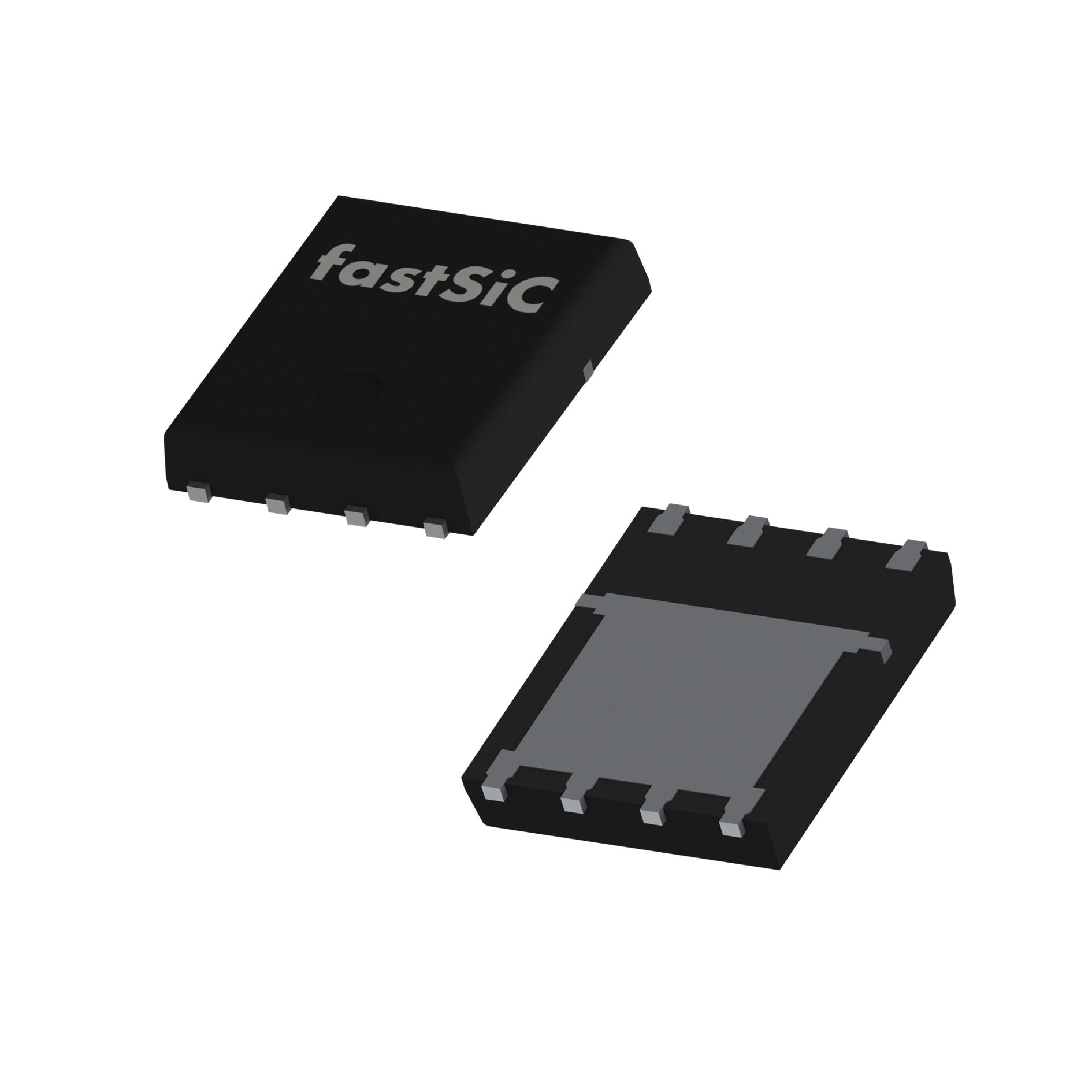

Images are for reference only

Manufacturer

fastSiC

Manufacturer No

FF06320B

Package

9-PowerTDFN

Packaging

Tape & Reel (TR)

Description

SICFET N-CH 650V 8.6A PQFN5x6

Detailed Description

N-Channel 650 V 8.6A (Tc) 41W (Tc) Surface Mount 8-PQFN (5x6), Power56

Datasheet

FF06320B

Payment

Delivery

Mfr

fastSiC

Grade

-

Series

Falcon

FET Type

N-Channel

Packaging

Tape & Reel (TR)

Vgs (Max)

+18V, -8V

Technology

SiCFET (Silicon Carbide)

Mounting Type

Surface Mount

Qualification

-

Package / Case

9-PowerTDFN

Vgs(th) (Max) @ Id

1.6V @ 4mA (Typ)

Operating Temperature

-55°C ~ 175°C (TJ)

Rds On (Max) @ Id, Vgs

420mOhm @ 2A, 18V

Power Dissipation (Max)

41W (Tc)

Supplier Device Package

8-PQFN (5x6), Power56

Gate Charge (Qg) (Max) @ Vgs

14.5 nC @ 400 V

Drain to Source Voltage (Vdss)

650 V

Input Capacitance (Ciss) (Max) @ Vds

318 pF @ 400 V

Drive Voltage (Max Rds On, Min Rds On)

15V, 18V

Current - Continuous Drain (Id) @ 25°C

8.6A (Tc)

Attribute	Value
Mfr	fastSiC
Grade	-
Series	Falcon
FET Type	N-Channel
Packaging	Tape & Reel (TR)
Vgs (Max)	+18V, -8V
Technology	SiCFET (Silicon Carbide)
Mounting Type	Surface Mount
Qualification	-
Package / Case	9-PowerTDFN
Vgs(th) (Max) @ Id	1.6V @ 4mA (Typ)
Operating Temperature	-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs	420mOhm @ 2A, 18V
Power Dissipation (Max)	41W (Tc)
Supplier Device Package	8-PQFN (5x6), Power56
Gate Charge (Qg) (Max) @ Vgs	14.5 nC @ 400 V
Drain to Source Voltage (Vdss)	650 V
Input Capacitance (Ciss) (Max) @ Vds	318 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)	15V, 18V
Current - Continuous Drain (Id) @ 25°C	8.6A (Tc)
