Step1: Product

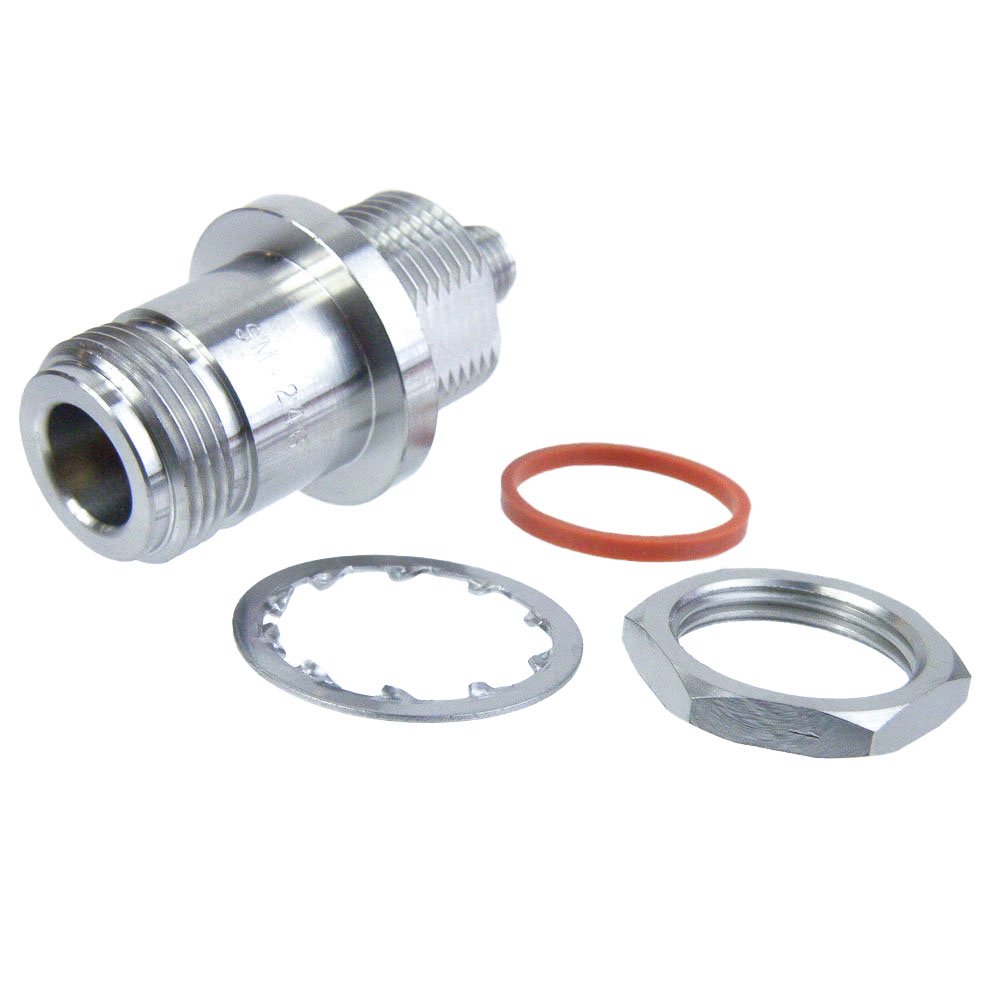

Fairview Microwave SM4246
Images are for reference only
Manufacturer
Manufacturer No
SM4246
Packaging
Bag
Description
COAX ADAPT SMA TO N
Detailed Description
Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Datasheet
Payment
Delivery
Mfr
Fairview Microwave
Style
Straight
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
Passivated
Adapter Type
Jack to Jack
Body Material
Stainless Steel
Center Gender
Female to Female
Mating Cycles
-
Mounting Type
Panel Mount
Adapter Series
SMA to N
Fastening Type
Threaded, Threaded
Insertion Loss
-
Conversion Type
Between Series
Frequency - Max
18 GHz
Mounting Feature
Bulkhead
Ingress Protection
-
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMA Jack, Female Socket
Convert From (Adapter End)
N Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | Fairview Microwave |
| Style | Straight |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Passivated |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Gender | Female to Female |
| Mating Cycles | - |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to N |
| Fastening Type | Threaded, Threaded |
| Insertion Loss | - |
| Conversion Type | Between Series |
| Frequency - Max | 18 GHz |
| Mounting Feature | Bulkhead |
| Ingress Protection | - |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | N Jack, Female Socket |
