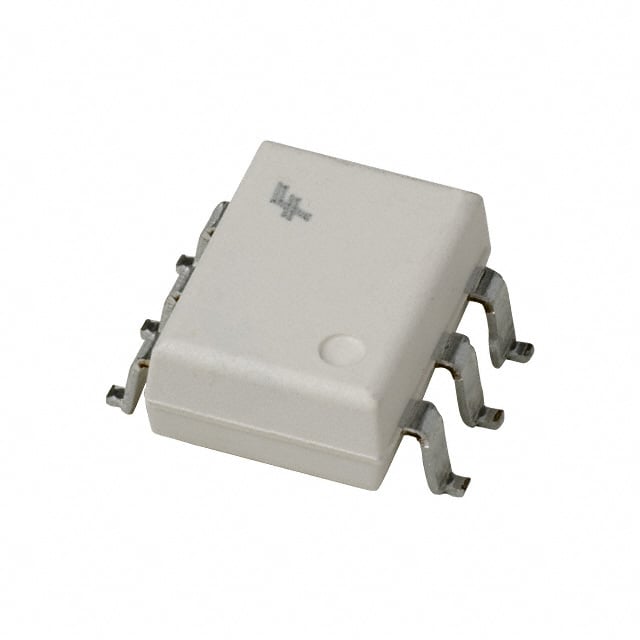

Fairchild Semiconductor TIL117SR2VM
Images are for reference only
Manufacturer
Manufacturer No
TIL117SR2VM
Availability
In Stock
Package
6-SMD, Gull Wing
Packaging
Bulk
Description
OPTOISO 7.5KV TRANS W/BASE 6-SMD
Detailed Description
Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-SMD
Datasheet
Payment
Delivery
Series
-
Packaging
Bulk
Input Type
DC
Output Type
Transistor with Base
Manufacturer
Fairchild Semiconductor
Mounting Type
Surface Mount
Package / Case
6-SMD, Gull Wing
Number of Channels
1
Voltage - Isolation
7500Vpk
Vce Saturation (Max)
400mV
Operating Temperature
-40°C ~ 100°C
Rise / Fall Time (Typ)
2µs, 2µs
Voltage - Output (Max)
30V
Supplier Device Package
6-SMD
Current - Output / Channel
-
Current Transfer Ratio (Max)
-
Current Transfer Ratio (Min)
50% @ 10mA
Voltage - Forward (Vf) (Typ)
1.2V
Turn On / Turn Off Time (Typ)
10µs, 10µs (Max)
Current - DC Forward (If) (Max)
60 mA
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Bulk |
| Input Type | DC |
| Output Type | Transistor with Base |
| Manufacturer | Fairchild Semiconductor |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Number of Channels | 1 |
| Voltage - Isolation | 7500Vpk |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Voltage - Output (Max) | 30V |
| Supplier Device Package | 6-SMD |
| Current - Output / Channel | - |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Turn On / Turn Off Time (Typ) | 10µs, 10µs (Max) |
| Current - DC Forward (If) (Max) | 60 mA |
