Fairchild Semiconductor HGT1S20N36G3VLS

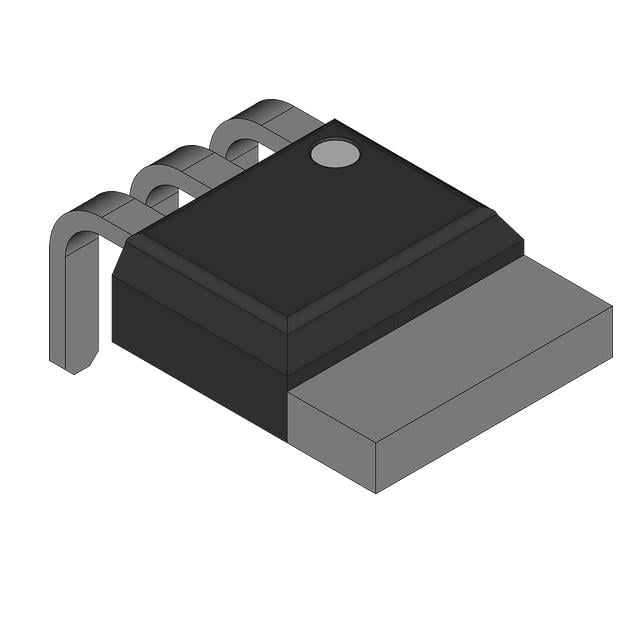

Images are for reference only
Manufacturer
Manufacturer No
HGT1S20N36G3VLS
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Bulk
Description
IGBT 415V 37.7A TO-263AB
Detailed Description
IGBT 415 V 37.7 A 150 W Surface Mount TO-263AB
Datasheet
Payment
Delivery
Series
-
IGBT Type
-
Packaging
Bulk
Input Type
Logic
Gate Charge
28.7 nC
Power - Max
150 W
Manufacturer
Fairchild Semiconductor
Mounting Type
Surface Mount
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Test Condition
300V, 10A, 25Ohm, 5V
Switching Energy
-
Td (on/off) @ 25°C
-/15µs
Operating Temperature
-40°C ~ 175°C (TJ)
Supplier Device Package
TO-263AB
Vce(on) (Max) @ Vge, Ic
1.9V @ 5V, 20A
Current - Collector (Ic) (Max)
37.7 A
Voltage - Collector Emitter Breakdown (Max)
415 V
| Attribute | Value |
|---|---|
| Series | - |
| IGBT Type | - |
| Packaging | Bulk |
| Input Type | Logic |
| Gate Charge | 28.7 nC |
| Power - Max | 150 W |
| Manufacturer | Fairchild Semiconductor |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Test Condition | 300V, 10A, 25Ohm, 5V |
| Switching Energy | - |
| Td (on/off) @ 25°C | -/15µs |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-263AB |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 5V, 20A |
| Current - Collector (Ic) (Max) | 37.7 A |
| Voltage - Collector Emitter Breakdown (Max) | 415 V |
