Fairchild Semiconductor FOD8314T

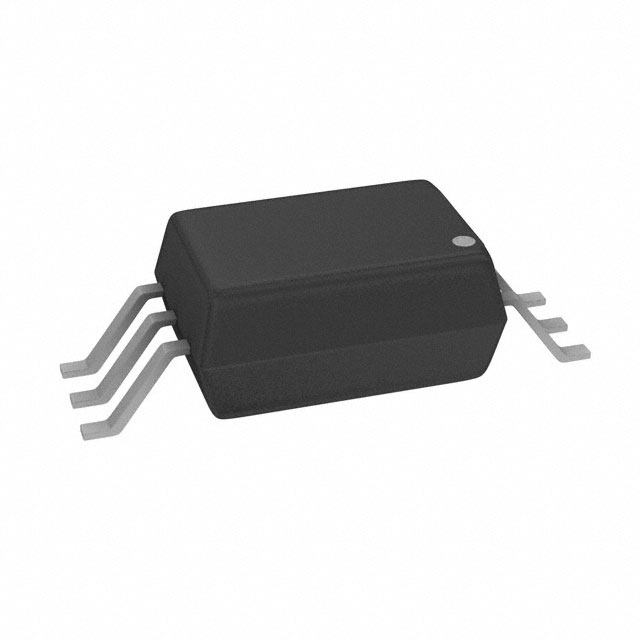

Images are for reference only
Manufacturer
Manufacturer No
FOD8314T
Quantity
7
Availability
In Stock
Package
6-SOIC (0.268", 6.80mm Width)
Packaging
Bulk
Description
OPTOISO 5KV 1CH GATE DVR 6SOP
Detailed Description
1.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SOP
Datasheet
Payment
Delivery
Mfr
Fairchild Semiconductor
Series
-
Packaging
Bulk
Technology
Optical Coupling
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.268", 6.80mm Width)
Approval Agency
UL
Number of Channels
1
Voltage - Isolation
5000Vrms
Current - Peak Output
1.5A
Operating Temperature
-40°C ~ 100°C
Rise / Fall Time (Typ)
60ns, 40ns
Supplier Device Package
6-SOP
Voltage - Output Supply
16V ~ 30V
Current - Output High, Low
1A, 1A
Pulse Width Distortion (Max)
300ns
Voltage - Forward (Vf) (Typ)
1.5V
Current - DC Forward (If) (Max)
25 mA
Propagation Delay tpLH / tpHL (Max)
500ns, 500ns
Common Mode Transient Immunity (Min)
20kV/µs
| Attribute | Value |
|---|---|
| Mfr | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| Technology | Optical Coupling |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Approval Agency | UL |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current - Peak Output | 1.5A |
| Operating Temperature | -40°C ~ 100°C |
| Rise / Fall Time (Typ) | 60ns, 40ns |
| Supplier Device Package | 6-SOP |
| Voltage - Output Supply | 16V ~ 30V |
| Current - Output High, Low | 1A, 1A |
| Pulse Width Distortion (Max) | 300ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
