Fairchild Semiconductor FDMF5823DC

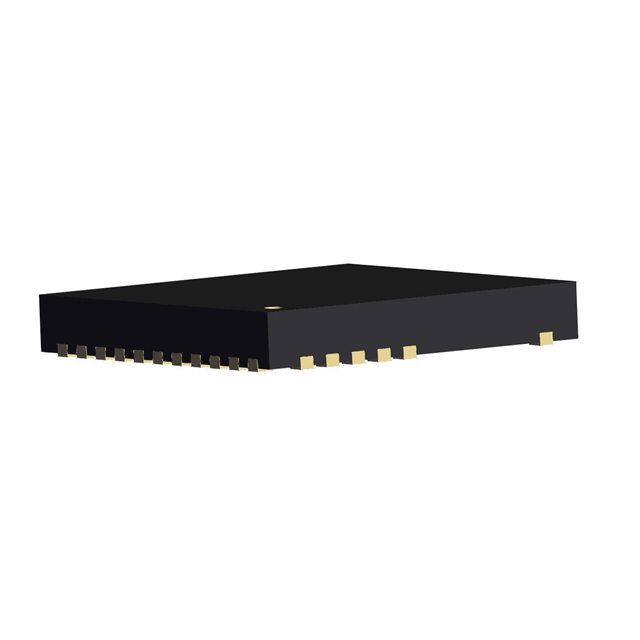

Images are for reference only
Manufacturer
Manufacturer No
FDMF5823DC
Package
31-PowerWFQFN
Packaging
Bulk
Description
HALF BRIDGE BASED MOSFET DRIVER
Detailed Description
Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
Datasheet
Payment
Delivery
Series
PowerTrench®, SyncFET™
Features
Bootstrap Circuit, Latch Function, Status Flag
Interface
PWM
Load Type
Inductive
Packaging
Bulk
Technology
UMOS
Applications
Synchronous Buck Converters
Manufacturer
Fairchild Semiconductor
Rds On (Typ)
470mOhm LS, 680mOhm HS
Mounting Type
Surface Mount
Package / Case
31-PowerWFQFN
Voltage - Load
4.5V ~ 16V
Fault Protection
Over Temperature, UVLO
Voltage - Supply
4.5V ~ 5.5V
Base Product Number
FDMF5823
Output Configuration
Half Bridge
Current - Peak Output
-
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
31-PQFN (5x5)
Current - Output / Channel
55A
| Attribute | Value |
|---|---|
| Series | PowerTrench®, SyncFET™ |
| Features | Bootstrap Circuit, Latch Function, Status Flag |
| Interface | PWM |
| Load Type | Inductive |
| Packaging | Bulk |
| Technology | UMOS |
| Applications | Synchronous Buck Converters |
| Manufacturer | Fairchild Semiconductor |
| Rds On (Typ) | 470mOhm LS, 680mOhm HS |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerWFQFN |
| Voltage - Load | 4.5V ~ 16V |
| Fault Protection | Over Temperature, UVLO |
| Voltage - Supply | 4.5V ~ 5.5V |
| Base Product Number | FDMF5823 |
| Output Configuration | Half Bridge |
| Current - Peak Output | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 31-PQFN (5x5) |
| Current - Output / Channel | 55A |
