Step1: Product

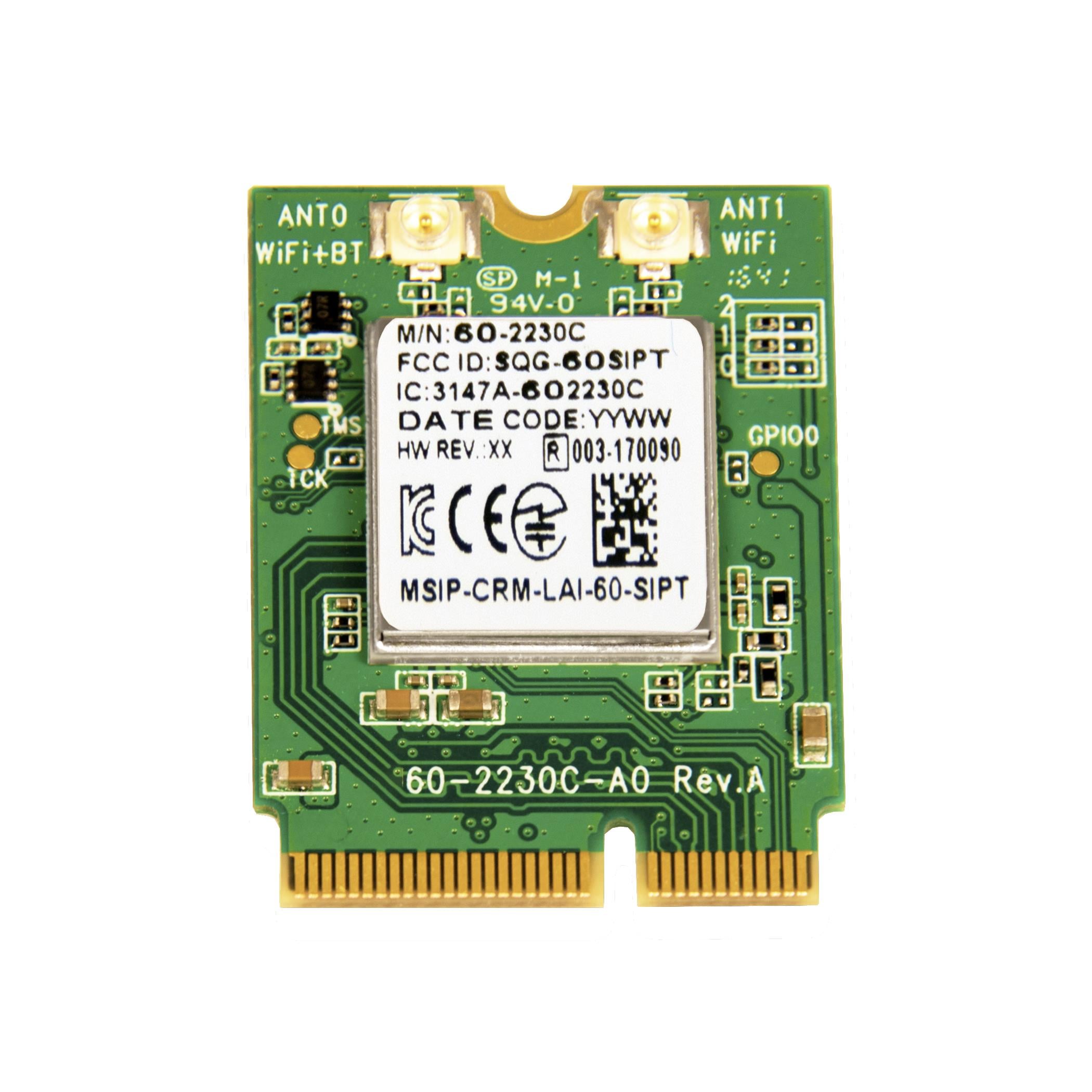

Ezurio ST60-2230C-PU
Images are for reference only
Manufacturer
Manufacturer No
ST60-2230C-PU
Date Code
2020
Quantity
308
Availability
In Stock
Package
M.2 2230 Module
Packaging
Tray
Description
RF TXRX MODULE BT U.FL CARD EDGE
Detailed Description
Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.1, Class 1 and 2 Transceiver Module 2.4GHz, 5GHz U.FL, U.FL Card Edge
Datasheet
Payment
Delivery
Mfr
Ezurio
Series
60-2230C
Protocol
802.11a/b/g/n/ac, Bluetooth v5.1, Class 1 and 2
Data Rate
866.7Mbps
Frequency
2.4GHz, 5GHz
Packaging
Tray
Modulation
16QAM, 64QAM, 256QAM, BPSK, CCK, DSSS, DQPSK, GFSK, OFDM, QPSK
Memory Size
-
Sensitivity
-95dBm
Antenna Type
U.FL, U.FL
Mounting Type
Card Edge
Package / Case
M.2 2230 Module
Power - Output
18dBm
Voltage - Supply
2.97V ~ 3.63V
Serial Interfaces
PCIe, USB
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
88W8997, 88PG823
Base Product Number
ST60-2230
Current - Receiving
-
DigiKey Programmable
Not Verified
Operating Temperature
-30°C ~ 85°C
Current - Transmitting
-
| Attribute | Value |
|---|---|
| Mfr | Ezurio |
| Series | 60-2230C |
| Protocol | 802.11a/b/g/n/ac, Bluetooth v5.1, Class 1 and 2 |
| Data Rate | 866.7Mbps |
| Frequency | 2.4GHz, 5GHz |
| Packaging | Tray |
| Modulation | 16QAM, 64QAM, 256QAM, BPSK, CCK, DSSS, DQPSK, GFSK, OFDM, QPSK |
| Memory Size | - |
| Sensitivity | -95dBm |
| Antenna Type | U.FL, U.FL |
| Mounting Type | Card Edge |
| Package / Case | M.2 2230 Module |
| Power - Output | 18dBm |
| Voltage - Supply | 2.97V ~ 3.63V |
| Serial Interfaces | PCIe, USB |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | 88W8997, 88PG823 |
| Base Product Number | ST60-2230 |
| Current - Receiving | - |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -30°C ~ 85°C |
| Current - Transmitting | - |
