Step1: Product
Excel Cell Electronic Co., Ltd. ESS0531310

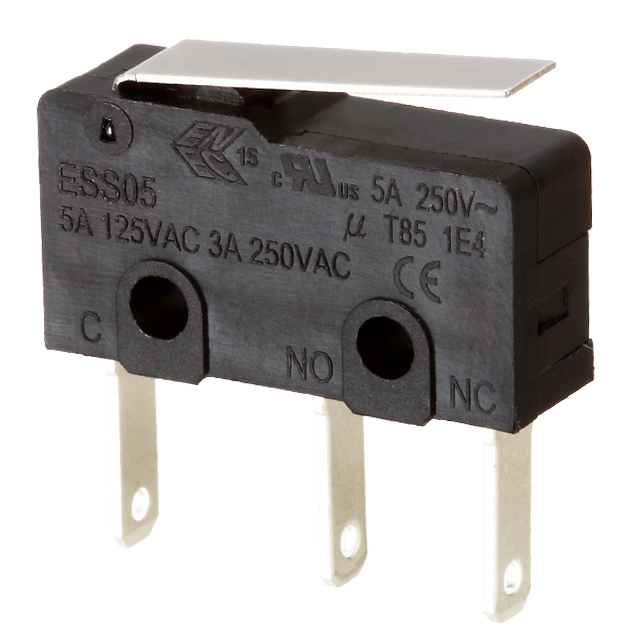

Images are for reference only
Manufacturer
Manufacturer No
ESS0531310
Packaging
Tray
Description
MICRO SW, 5A, SOLDER TERMINAL, S
Detailed Description
Switch Chassis Mount
Datasheet
Payment
Delivery
Series
ESS
Circuit
-
Features
-
Packaging
Tray
Pretravel
-
Overtravel
0.047" (1.2mm)
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Lever, Straight
Mounting Type
Chassis Mount
Release Force
6gf
Electrical Life
200,000 Cycles
Mechanical Life
30,000,000 Cycles
Operating Force
150gf
Switch Function
On-On
Termination Style
Solder Turret
Ingress Protection
-
Operating Position
0.345" (8.8mm)
Differential Travel
0.031" (0.8mm)
Voltage Rating - AC
125 V
Current Rating (Amps)
5A (AC)
Operating Temperature
-25°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | ESS |
| Circuit | - |
| Features | - |
| Packaging | Tray |
| Pretravel | - |
| Overtravel | 0.047" (1.2mm) |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount |
| Release Force | 6gf |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 30,000,000 Cycles |
| Operating Force | 150gf |
| Switch Function | On-On |
| Termination Style | Solder Turret |
| Ingress Protection | - |
| Operating Position | 0.345" (8.8mm) |
| Differential Travel | 0.031" (0.8mm) |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 5A (AC) |
| Operating Temperature | -25°C ~ 85°C |
