Step1: Product
Excel Cell Electronic Co., Ltd. ERFSM035162RZ

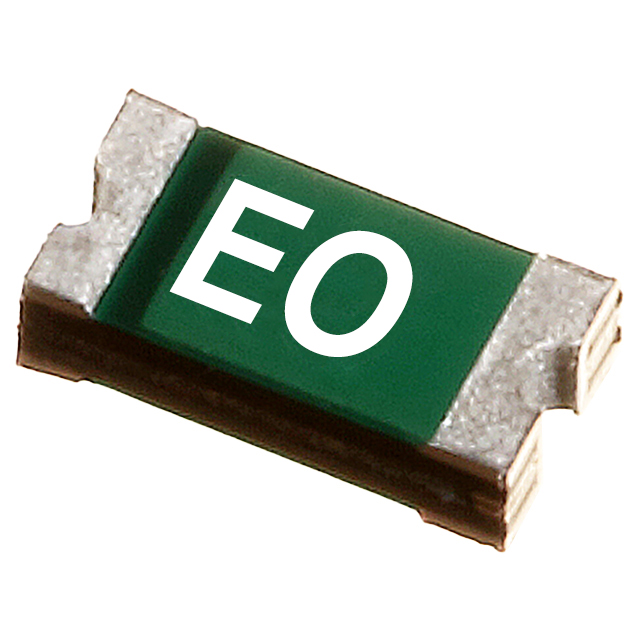

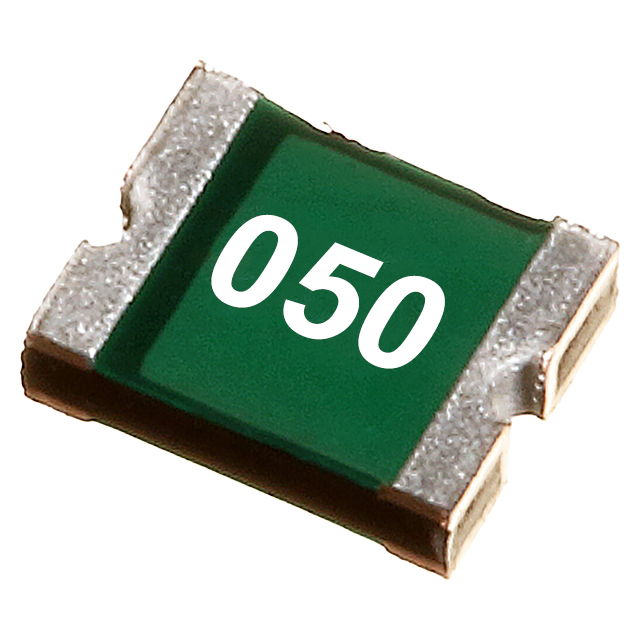

Images are for reference only
Manufacturer
Manufacturer No
ERFSM035162RZ
Package
1210 (3225 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
1210/0.35AMP/16V/T&R/ROHS
Detailed Description
Polymeric PTC Resettable Fuse 16V 350 mA Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
Payment
Delivery
Type
Polymeric
Series
ERFSM
Ratings
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lead Spacing
-
Manufacturer
Excel Cell Electronic Co., Ltd.
Time to Trip
200 ms
Current - Max
100 A
Mounting Type
Surface Mount
Voltage - Max
16V
Package / Case
1210 (3225 Metric), Concave
Approval Agency
cURus
Thickness (Max)
0.031" (0.80mm)
Size / Dimension
0.127" L x 0.101" W (3.22mm x 2.58mm)
Current - Trip (It)
700 mA
Height - Seated (Max)
-
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
350 mA
Resistance - Initial (Ri) (Min)
320 mOhms
Resistance - Post Trip (R1) (Max)
1.3 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | ERFSM |
| Ratings | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lead Spacing | - |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Time to Trip | 200 ms |
| Current - Max | 100 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 16V |
| Package / Case | 1210 (3225 Metric), Concave |
| Approval Agency | cURus |
| Thickness (Max) | 0.031" (0.80mm) |
| Size / Dimension | 0.127" L x 0.101" W (3.22mm x 2.58mm) |
| Current - Trip (It) | 700 mA |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 350 mA |
| Resistance - Initial (Ri) (Min) | 320 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.3 Ohms |
