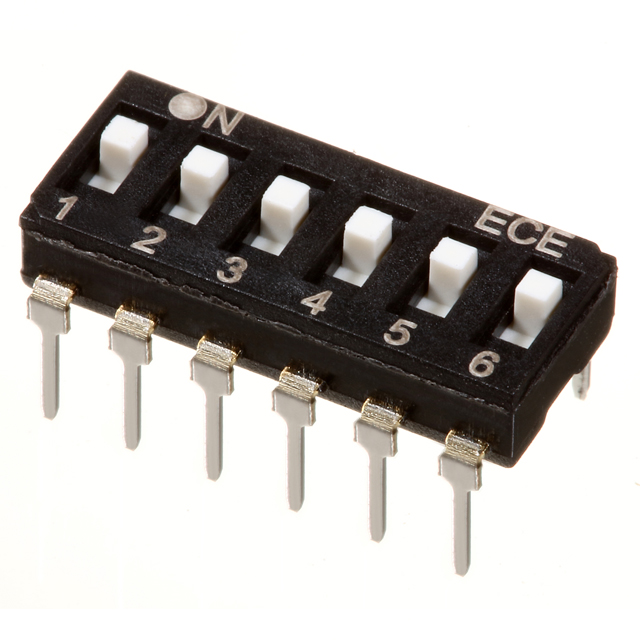

Excel Cell Electronic Co., Ltd. EAM106EZ
Images are for reference only
Manufacturer
Manufacturer No
EAM106EZ
Packaging
Tube
Description
SWITCH DIP SLIDE SPST 25MA 24V
Detailed Description
Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.598" (15.19mm)
Series
EAM
Circuit
SPST
Features
-
Washable
No
Packaging
Tube
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Mounting Type
Through Hole
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
-
Mechanical Life
2,000 Cycles
Contact Material
-
Termination Style
PC Pin
Height Above Board
0.138" (3.50mm)
Number of Positions
6
Current Rating (Amps)
25mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.598" (15.19mm) |
| Series | EAM |
| Circuit | SPST |
| Features | - |
| Washable | No |
| Packaging | Tube |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | - |
| Mechanical Life | 2,000 Cycles |
| Contact Material | - |
| Termination Style | PC Pin |
| Height Above Board | 0.138" (3.50mm) |
| Number of Positions | 6 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -25°C ~ 70°C |
