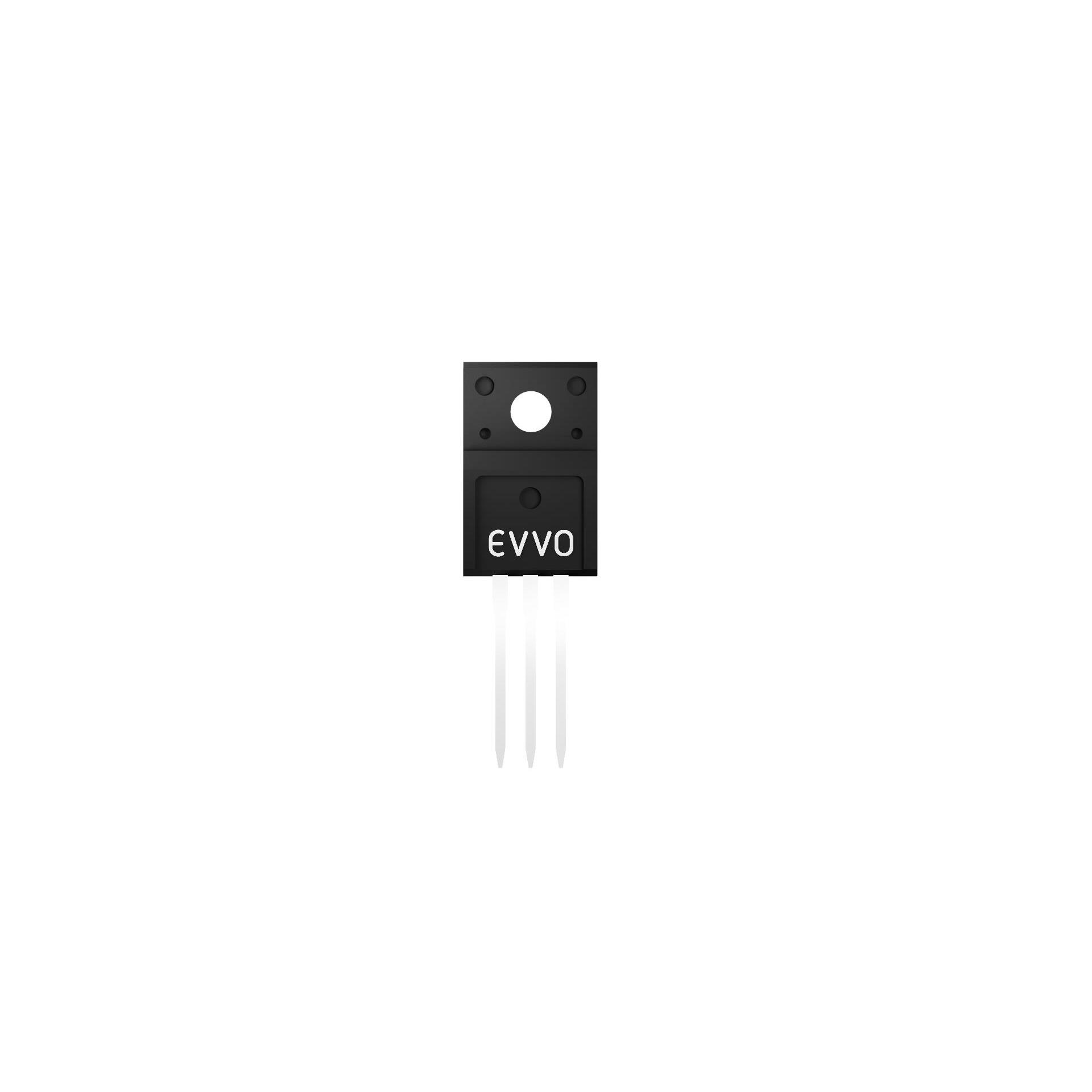

EVVO 4N60F
Mfr
EVVO
Grade
-
Series
-
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±30V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Through Hole
Qualification
-
Package / Case
TO-220-3 Full Pack
Vgs(th) (Max) @ Id
4V @ 250µA
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
2.8Ohm @ 1.5A, 10V
Power Dissipation (Max)
30W (Tc)
Supplier Device Package
TO-220F
Gate Charge (Qg) (Max) @ Vgs
13.5 nC @ 10 V
Drain to Source Voltage (Vdss)
600 V
Input Capacitance (Ciss) (Max) @ Vds
462 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
3A (Tc)
| Attribute | Value |
|---|---|
| Mfr | EVVO |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-220-3 Full Pack |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2.8Ohm @ 1.5A, 10V |
| Power Dissipation (Max) | 30W (Tc) |
| Supplier Device Package | TO-220F |
| Gate Charge (Qg) (Max) @ Vgs | 13.5 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 600 V |
| Input Capacitance (Ciss) (Max) @ Vds | 462 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) |
