Step1: Product

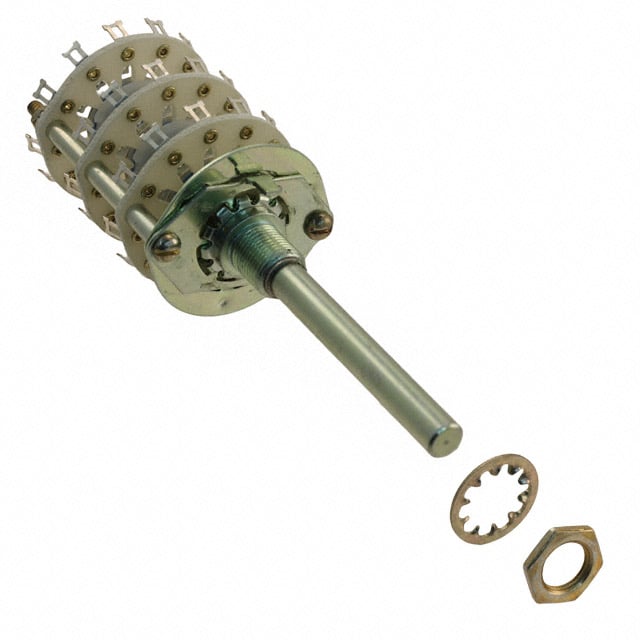

Electroswitch D4G0311N
Images are for reference only
Manufacturer
Manufacturer No
D4G0311N
Availability
In Stock
Packaging
Bulk
Description
SWITCH ROTARY 2-11POS 500MA 115V
Detailed Description
Rotary Switch 2 ~ 11 Position SP11T 500mA (AC), 1.5A (DC) 115 VAC Panel Mount
Datasheet
Payment
Delivery
Series
D4
Features
-
Packaging
Bulk
Index Stops
Adjustable
Manufacturer
Electroswitch
Actuator Type
Round (6.35mm Dia)
Mounting Type
Panel Mount
Angle of Throw
30°
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
47.63mm
Number of Decks
3
Circuit per Deck
SP11T
Contact Material
Brass
Termination Style
Solder Lug
Depth Behind Panel
42.82mm
Base Product Number
D4G0311
Number of Positions
2 ~ 11
Voltage Rating - AC
115 V
Voltage Rating - DC
28 V
Current Rating (Amps)
500mA (AC), 1.5A (DC)
Panel Cutout Dimensions
Circular - 9.78mm Dia
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | D4 |
| Features | - |
| Packaging | Bulk |
| Index Stops | Adjustable |
| Manufacturer | Electroswitch |
| Actuator Type | Round (6.35mm Dia) |
| Mounting Type | Panel Mount |
| Angle of Throw | 30° |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 47.63mm |
| Number of Decks | 3 |
| Circuit per Deck | SP11T |
| Contact Material | Brass |
| Termination Style | Solder Lug |
| Depth Behind Panel | 42.82mm |
| Base Product Number | D4G0311 |
| Number of Positions | 2 ~ 11 |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 500mA (AC), 1.5A (DC) |
| Panel Cutout Dimensions | Circular - 9.78mm Dia |
| Number of Poles per Deck | 1 |
