EDAC Inc. 628-27W2624-7TC
Images are for reference only
Manufacturer
Manufacturer No
628-27W2624-7TC
Packaging
Tray
Description

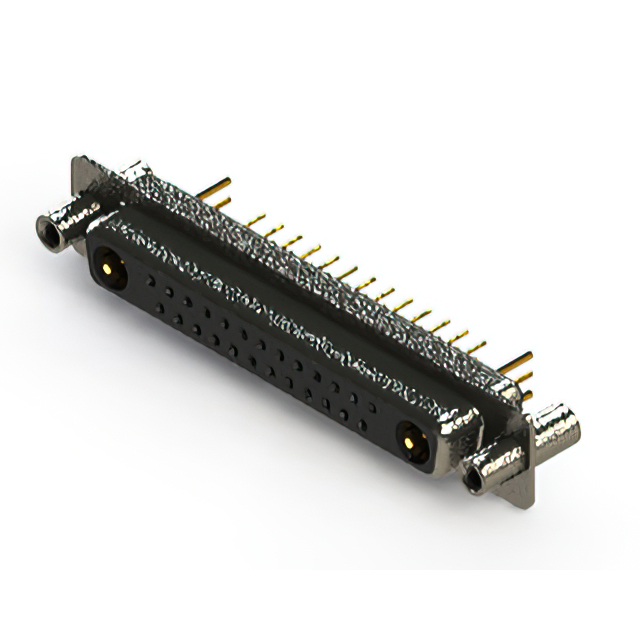

CONN D-SUB RCPT 27POS VERT SLDR
Detailed Description
27 (25 + 2 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
EDAC Inc.
Color
Black
Series
628-C
Features
Shielded
Packaging
Tray
Wire Gauge
-
Termination
Solder
Contact Form
-
Contact Type
Coax and Signal
Mounting Type
Through Hole
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Board Side (M3); Mating Side (M3)
Number of Rows
2
Voltage Rating
125V
Backset Spacing
-
Connector Style
D-Sub, Combo
Contact Material
Copper Alloy
Ingress Protection
-
Base Product Number
628-27W
Dielectric Material
Polyester Thermoplastic
Number of Positions
27 (25 + 2 Coax)
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
4 (DC, C) - 27W2
| Attribute | Value |
|---|---|
| Mfr | EDAC Inc. |
| Color | Black |
| Series | 628-C |
| Features | Shielded |
| Packaging | Tray |
| Wire Gauge | - |
| Termination | Solder |
| Contact Form | - |
| Contact Type | Coax and Signal |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Board Side (M3); Mating Side (M3) |
| Number of Rows | 2 |
| Voltage Rating | 125V |
| Backset Spacing | - |
| Connector Style | D-Sub, Combo |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Base Product Number | 628-27W |
| Dielectric Material | Polyester Thermoplastic |
| Number of Positions | 27 (25 + 2 Coax) |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 4 (DC, C) - 27W2 |
