Step1: Product

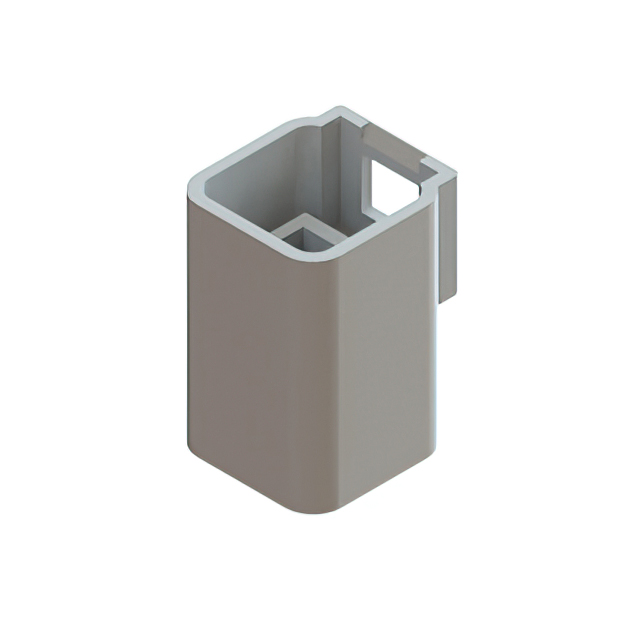

EDAC Inc. 570-001-420-101
Images are for reference only
Manufacturer
Manufacturer No
570-001-420-101
Packaging
Bulk
Description
CONN HEADER VERT 1POS
Detailed Description
Connector Header Through Hole 1 position
Datasheet
Payment
Delivery
Mfr
EDAC Inc.
Style
Board to Cable/Wire
Series
570
Features
-
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Male Pin
Contact Shape
-
Mounting Type
Through Hole
Connector Type
Plug
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
-
Voltage Rating
300V
Contact Material
Brass
Insulation Color
-
Insulation Height
0.768" (19.50mm)
Ingress Protection
IP67 - Dust Tight, Waterproof
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
1
Row Spacing - Mating
-
Contact Finish - Post
-
Contact Length - Post
-
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | EDAC Inc. |
| Style | Board to Cable/Wire |
| Series | 570 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Male Pin |
| Contact Shape | - |
| Mounting Type | Through Hole |
| Connector Type | Plug |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | - |
| Voltage Rating | 300V |
| Contact Material | Brass |
| Insulation Color | - |
| Insulation Height | 0.768" (19.50mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 1 |
| Row Spacing - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | - |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
