Step1: Product

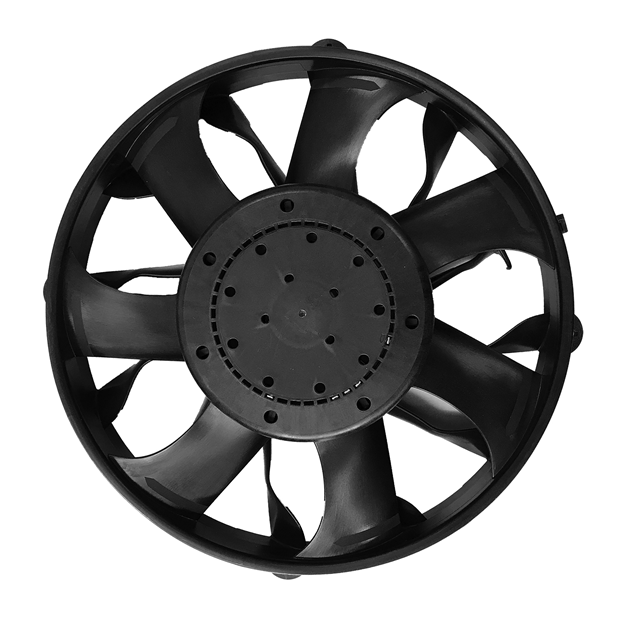

ebm-papst Inc. W3G300-ME46-01
Images are for reference only
Manufacturer
Manufacturer No
W3G300-ME46-01
Packaging
Bulk
Description
FAN AXIAL 330X76.7MM 26VDC RECT
Detailed Description
Fan Tubeaxial 26VDC Round - 330mm Dia Ball 1570.0 CFM (44.46m³/min) 4 Position Rectangular Connector
Datasheet
Payment
Delivery
Mfr
ebm-papst Inc.
RPM
3000 RPM
Noise
-
Width
76.70mm
Series
W2G300
Weight
4.4 lbs (2 kg)
Air Flow
1570.0 CFM (44.46m³/min)
Fan Type
Tubeaxial
Features
PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Packaging
Bulk
Termination
4 Position Rectangular Connector
Bearing Type
Ball
Voltage Range
16 ~ 32VDC
Approval Agency
EAC
Static Pressure
-
Voltage - Rated
26VDC
Lifetime @ Temp.
-
Material - Blade
Polyamide (PA), Nylon
Material - Frame
Polypropylene (PP)
Size / Dimension
Round - 330mm Dia
Ingress Protection
IP69K - Dust Tight, High Temp Water Jets, Waterproof
Current Rating (Amps)
6.7A
Operating Temperature
-40 ~ 185°F (-40 ~ 85°C)
| Attribute | Value |
|---|---|
| Mfr | ebm-papst Inc. |
| RPM | 3000 RPM |
| Noise | - |
| Width | 76.70mm |
| Series | W2G300 |
| Weight | 4.4 lbs (2 kg) |
| Air Flow | 1570.0 CFM (44.46m³/min) |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Packaging | Bulk |
| Termination | 4 Position Rectangular Connector |
| Bearing Type | Ball |
| Voltage Range | 16 ~ 32VDC |
| Approval Agency | EAC |
| Static Pressure | - |
| Voltage - Rated | 26VDC |
| Lifetime @ Temp. | - |
| Material - Blade | Polyamide (PA), Nylon |
| Material - Frame | Polypropylene (PP) |
| Size / Dimension | Round - 330mm Dia |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Current Rating (Amps) | 6.7A |
| Operating Temperature | -40 ~ 185°F (-40 ~ 85°C) |
