Step1: Product

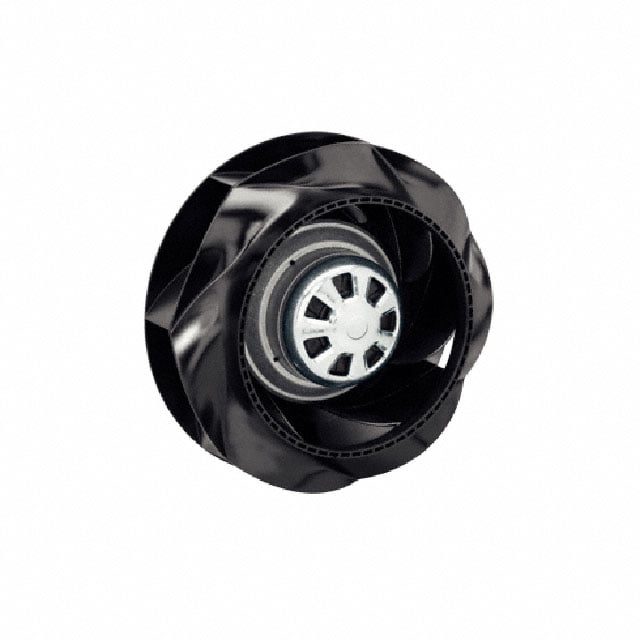

ebm-papst Inc. R3G225-RE19-04
Images are for reference only
Manufacturer
Manufacturer No
R3G225-RE19-04
Packaging
Bulk
Description
225 MM EC CENTRIFUGAL FAN
Detailed Description
Fan Motorized Impellers 115VAC Round - 225mm Dia Ball 753.4 CFM (21.10m³/min) 2 Wire Leads
Datasheet
Payment
Delivery
RPM
2870 RPM
Noise
70.0dB(A)
Width
99.00mm
Series
Green Tech RadiCal® R3G225RE
Weight
3.9 lbs (1.8 kg)
Air Flow
753.4 CFM (21.10m³/min)
Fan Type
Motorized Impellers
Features
Electronic Commutation (EC)
Packaging
Bulk
Termination
2 Wire Leads
Bearing Type
Ball
Manufacturer
ebm-papst Inc.
Power (Watts)
170W
Voltage Range
100 ~ 130VAC
Approval Agency
UL
Static Pressure
-
Voltage - Rated
115VAC
Lifetime @ Temp.
-
Material - Blade
Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame
Aluminum
Size / Dimension
Round - 225mm Dia
Ingress Protection
IP54 - Dust Protected, Water Resistant
Base Product Number
R3G225
Current Rating (Amps)
-
Operating Temperature
-13 ~ 122°F (-25 ~ 50°C)
| Attribute | Value |
|---|---|
| RPM | 2870 RPM |
| Noise | 70.0dB(A) |
| Width | 99.00mm |
| Series | Green Tech RadiCal® R3G225RE |
| Weight | 3.9 lbs (1.8 kg) |
| Air Flow | 753.4 CFM (21.10m³/min) |
| Fan Type | Motorized Impellers |
| Features | Electronic Commutation (EC) |
| Packaging | Bulk |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Manufacturer | ebm-papst Inc. |
| Power (Watts) | 170W |
| Voltage Range | 100 ~ 130VAC |
| Approval Agency | UL |
| Static Pressure | - |
| Voltage - Rated | 115VAC |
| Lifetime @ Temp. | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Size / Dimension | Round - 225mm Dia |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Base Product Number | R3G225 |
| Current Rating (Amps) | - |
| Operating Temperature | -13 ~ 122°F (-25 ~ 50°C) |
