Step1: Product

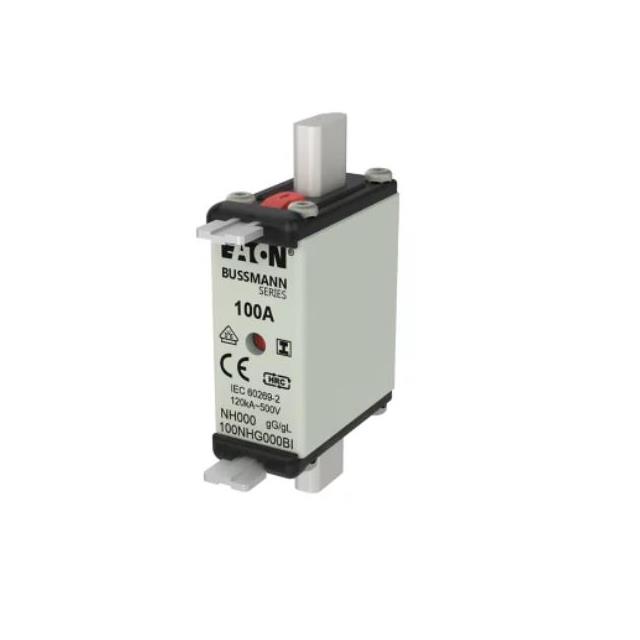

Eaton - Bussmann Electrical Division 100NHG000BI
Images are for reference only
Manufacturer
Manufacturer No
100NHG000BI
Package
Rectangular, Blade
Packaging
Bulk
Description
NH FUSE 100A 500V SIZE 000 GG IM
Detailed Description
100A 500 VAC Fuse Square Bolt Mount
Datasheet
Payment
Delivery
Class
gPV
Grade
-
Series
NH
Features
Indicating
Fuse Type
Square
Packaging
Bulk
Applications
Electrical, Industrial
Manufacturer
Eaton - Bussmann Electrical Division
Mounting Type
Bolt Mount
Qualification
-
Response Time
Fast Blow
Package / Case
Rectangular, Blade
Approval Agency
CE
Size / Dimension
1.945" L x 1.614" W x 0.827" H (49.40mm x 41.00mm x 21.00mm)
Voltage Rating - AC
500 VAC
Voltage Rating - DC
-
Current Rating (Amps)
100A
Operating Temperature
-
Breaking Capacity @ Rated Voltage
120kA
| Attribute | Value |
|---|---|
| Class | gPV |
| Grade | - |
| Series | NH |
| Features | Indicating |
| Fuse Type | Square |
| Packaging | Bulk |
| Applications | Electrical, Industrial |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Mounting Type | Bolt Mount |
| Qualification | - |
| Response Time | Fast Blow |
| Package / Case | Rectangular, Blade |
| Approval Agency | CE |
| Size / Dimension | 1.945" L x 1.614" W x 0.827" H (49.40mm x 41.00mm x 21.00mm) |
| Voltage Rating - AC | 500 VAC |
| Voltage Rating - DC | - |
| Current Rating (Amps) | 100A |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 120kA |
