Step1: Product

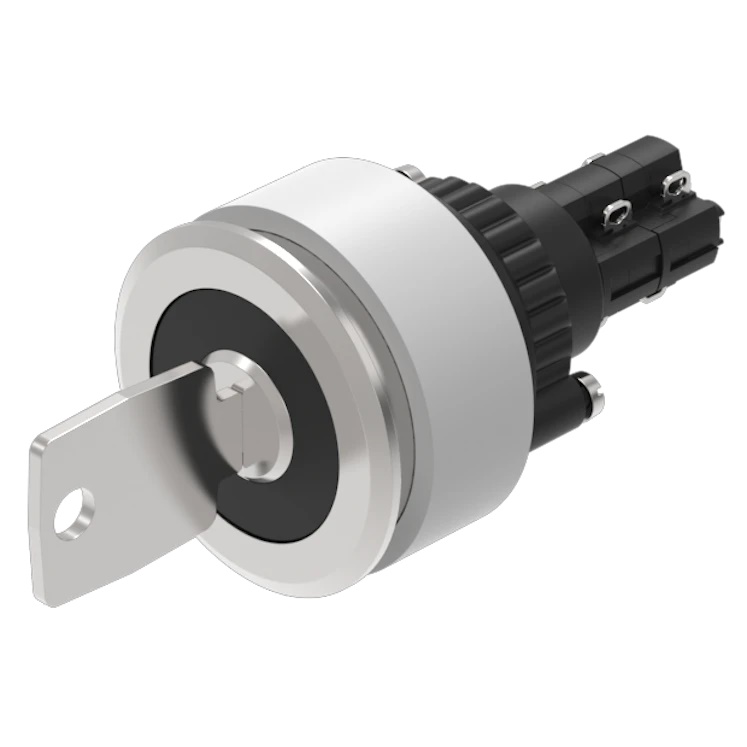

EAO K14-136.22200
Images are for reference only
Manufacturer
Manufacturer No
K14-136.22200
Packaging
Bulk
Description
SWITCH KEYLOCKPOS 4PST 5A 250V
Detailed Description
Keylock Switch Position 4PST-2NO/2NC 5A (AC) 250 VAC DC Panel Mount
Datasheet
Payment
Delivery
Series
14
Circuit
4PST-2NO/2NC
Features
IP65
Packaging
Bulk
Manufacturer
EAO
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
90°
Contact Finish
Gold
Contact Timing
Not Specified
Electrical Life
-
Mechanical Life
1,000,000 Cycles
Switch Function
On-Off, Off-On
Contact Material
Silver (Ag)
Termination Style
Solder Lug
Depth Behind Flange
46.50mm
Voltage Rating - AC
250 V
Current Rating (Amps)
5A (AC)
Operating Temperature
-25°C ~ 55°C
Key Removable Positions
1 only
Panel Cutout Dimensions
Circular - 30.50mm Dia
| Attribute | Value |
|---|---|
| Series | 14 |
| Circuit | 4PST-2NO/2NC |
| Features | IP65 |
| Packaging | Bulk |
| Manufacturer | EAO |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 90° |
| Contact Finish | Gold |
| Contact Timing | Not Specified |
| Electrical Life | - |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | On-Off, Off-On |
| Contact Material | Silver (Ag) |
| Termination Style | Solder Lug |
| Depth Behind Flange | 46.50mm |
| Voltage Rating - AC | 250 V |
| Current Rating (Amps) | 5A (AC) |
| Operating Temperature | -25°C ~ 55°C |
| Key Removable Positions | 1 only |
| Panel Cutout Dimensions | Circular - 30.50mm Dia |
