Step1: Product

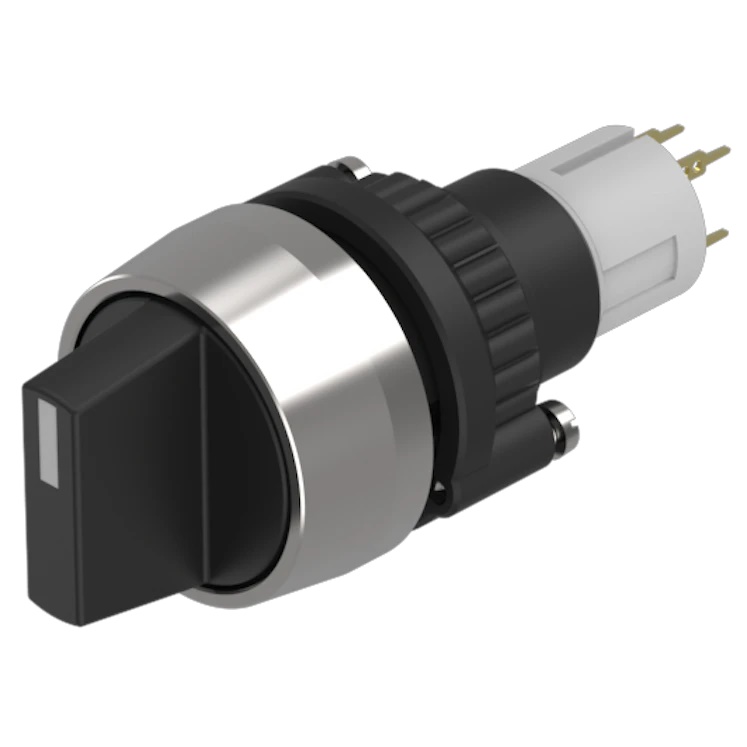

EAO 14-515.0360
Images are for reference only
Manufacturer
Manufacturer No
14-515.0360
Packaging
Bag
Description
ACTUATOR, NON ILLUMINATIVE, BLAC
Detailed Description
Selector Switch 2 Position DPST-NO 100mA (AC/DC) 42 V Panel Mount
Datasheet
Payment
Delivery
Type
Standard
Series
14
Circuit
DPST-NO
Features
-
Packaging
Bag
Illumination
Non-Illuminated
Manufacturer
EAO
Mounting Type
Panel Mount
Approval Agency
-
Electrical Life
-
Mechanical Life
-
Switch Function
Off-Mom
Termination Style
PC Pin, Solder Lug
Ingress Protection
IP67 - Dust Tight, Waterproof
Depth Behind Flange
52.50mm
Number of Positions
2
Voltage Rating - AC
42 V
Voltage Rating - DC
42 V
Current Rating (Amps)
100mA (AC/DC)
Operating Temperature
-
Panel Cutout Dimensions
Circular - 30.50mm Dia
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
| Attribute | Value |
|---|---|
| Type | Standard |
| Series | 14 |
| Circuit | DPST-NO |
| Features | - |
| Packaging | Bag |
| Illumination | Non-Illuminated |
| Manufacturer | EAO |
| Mounting Type | Panel Mount |
| Approval Agency | - |
| Electrical Life | - |
| Mechanical Life | - |
| Switch Function | Off-Mom |
| Termination Style | PC Pin, Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Depth Behind Flange | 52.50mm |
| Number of Positions | 2 |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Operating Temperature | - |
| Panel Cutout Dimensions | Circular - 30.50mm Dia |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
