Step1: Product
E-Switch PP1-DB7-1A1

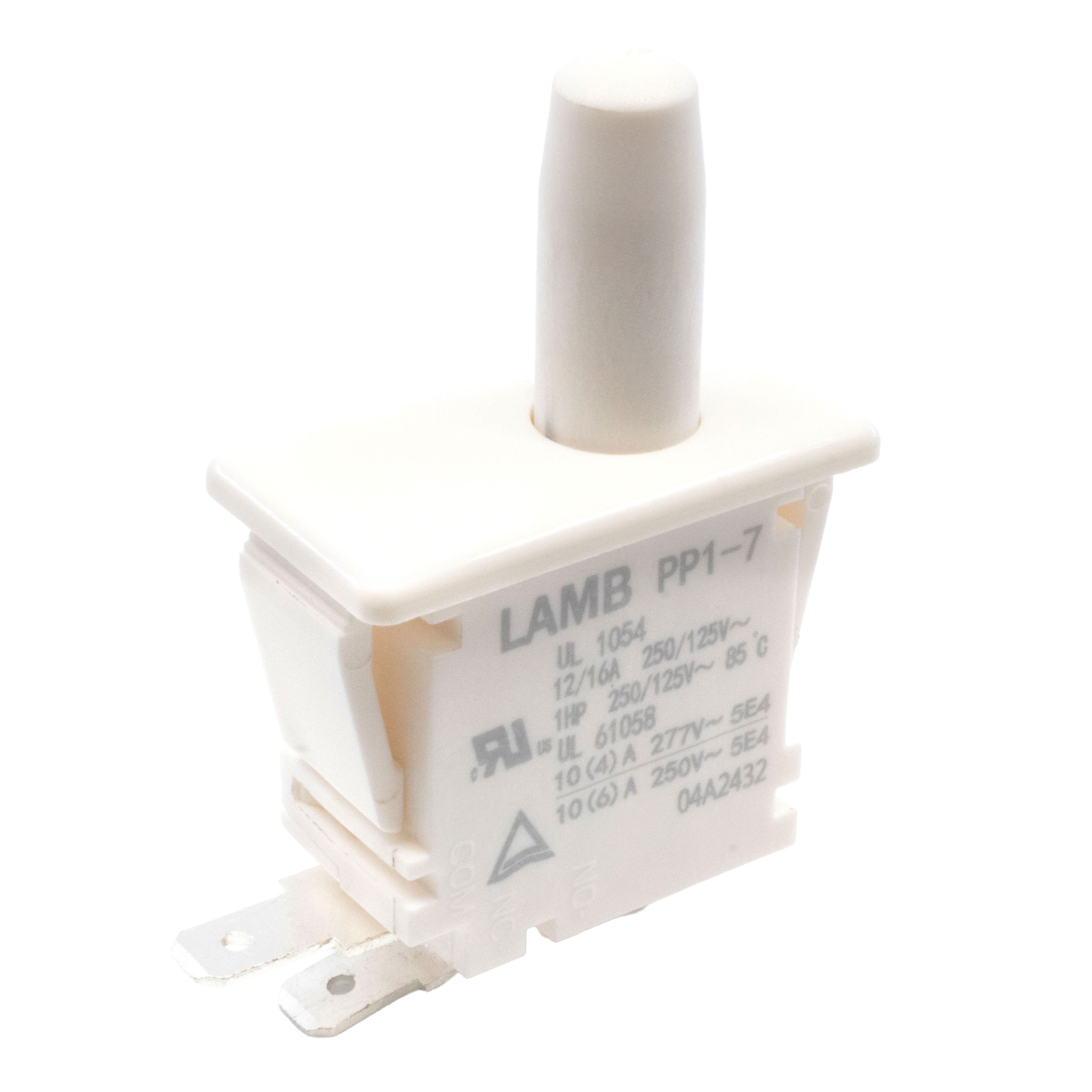

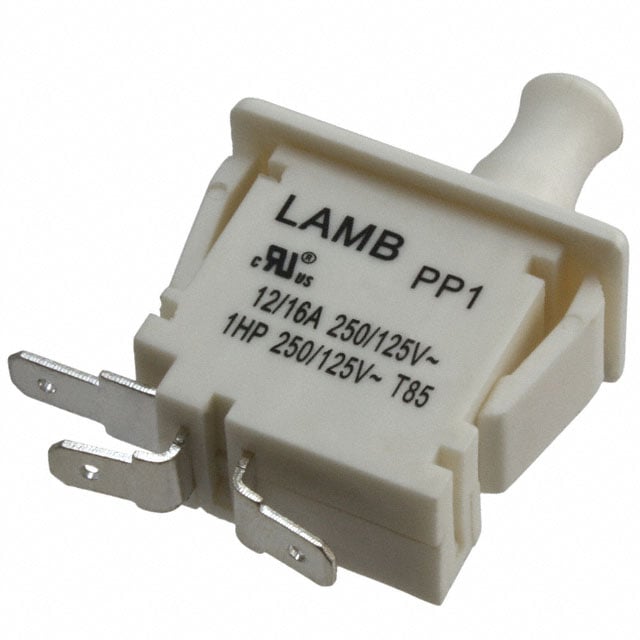

Images are for reference only
Manufacturer
Manufacturer No
PP1-DB7-1A1
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 16A 125V
Detailed Description
Switch SPDT Panel Mount, Snap-In
Datasheet
Payment
Delivery
Series
PP1
Circuit
SPDT
Features
-
Packaging
Bulk
Pretravel
-
Overtravel
-
Manufacturer
E-Switch
Actuator Type
Round (Pin Plunger)
Mounting Type
Panel Mount, Snap-In
Release Force
-
Electrical Life
6,000 Cycles
Mechanical Life
50,000 Cycles
Operating Force
300gf
Switch Function
On-Mom
Termination Style
Quick Connect - 0.187" (4.7mm)
Ingress Protection
IP40
Operating Position
0.736" (18.69mm)
Base Product Number
PP1-DB7
Differential Travel
-
Voltage Rating - AC
125 V
Current Rating (Amps)
16A (AC)
Operating Temperature
0°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | PP1 |
| Circuit | SPDT |
| Features | - |
| Packaging | Bulk |
| Pretravel | - |
| Overtravel | - |
| Manufacturer | E-Switch |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Panel Mount, Snap-In |
| Release Force | - |
| Electrical Life | 6,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Operating Force | 300gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP40 |
| Operating Position | 0.736" (18.69mm) |
| Base Product Number | PP1-DB7 |
| Differential Travel | - |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 16A (AC) |
| Operating Temperature | 0°C ~ 85°C |
