Step1: Product

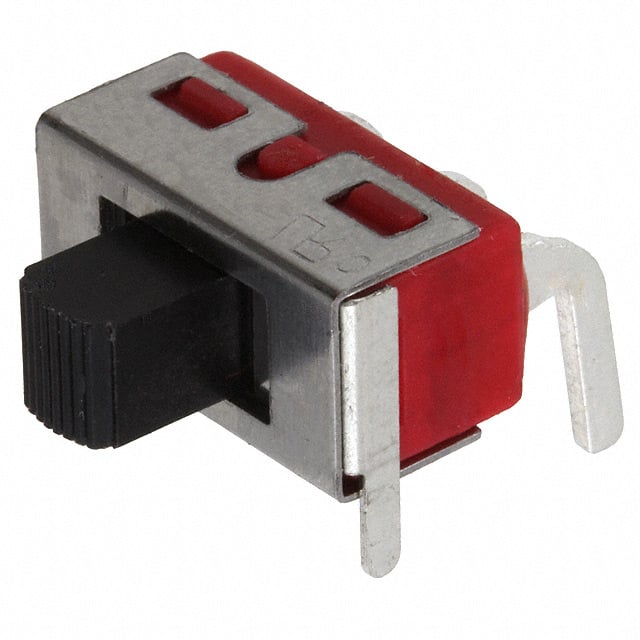

E-Switch 500SSP3S1M6QEA
Images are for reference only
Manufacturer
Manufacturer No
500SSP3S1M6QEA
Quantity
15
Availability
In Stock
Packaging
Bulk
Description
SWITCH SLIDE SPDT 5A 120V
Detailed Description
Slide Switch SPDT Through Hole, Right Angle
Datasheet
Payment
Delivery
Series
500
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Bulk
Manufacturer
E-Switch
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
2.16mm
Contact Finish
Silver
Contact Timing
Not Specified
Actuator Length
4.72mm
Electrical Life
30,000 Cycles
Mechanical Life
30,000 Cycles
Operating Force
-
Switch Function
On-Off-On
Contact Material
Copper Alloy
Actuator Material
Polyamide (PA), Nylon
Termination Style
PC Pin
Base Product Number
500SSP3
Voltage Rating - AC
120 V
Voltage Rating - DC
28 V
Current Rating (Amps)
5A (AC/DC)
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | 500 |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Manufacturer | E-Switch |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 2.16mm |
| Contact Finish | Silver |
| Contact Timing | Not Specified |
| Actuator Length | 4.72mm |
| Electrical Life | 30,000 Cycles |
| Mechanical Life | 30,000 Cycles |
| Operating Force | - |
| Switch Function | On-Off-On |
| Contact Material | Copper Alloy |
| Actuator Material | Polyamide (PA), Nylon |
| Termination Style | PC Pin |
| Base Product Number | 500SSP3 |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 5A (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
