Step1: Product
Diodes Incorporated SBR40U200CT

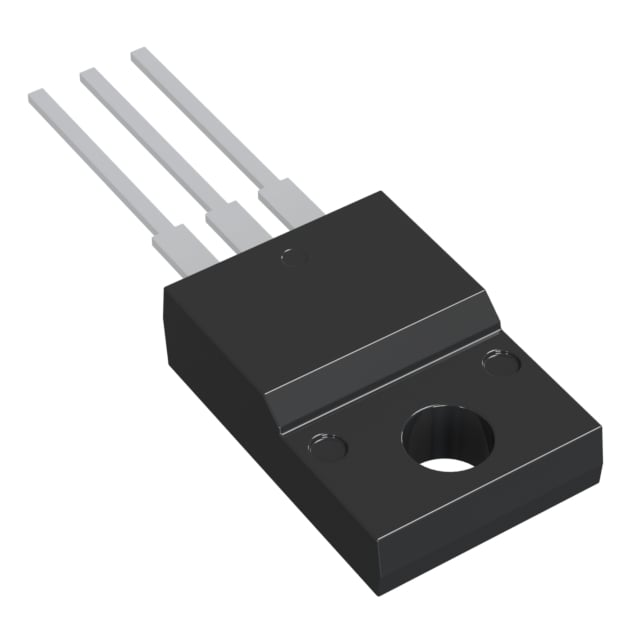

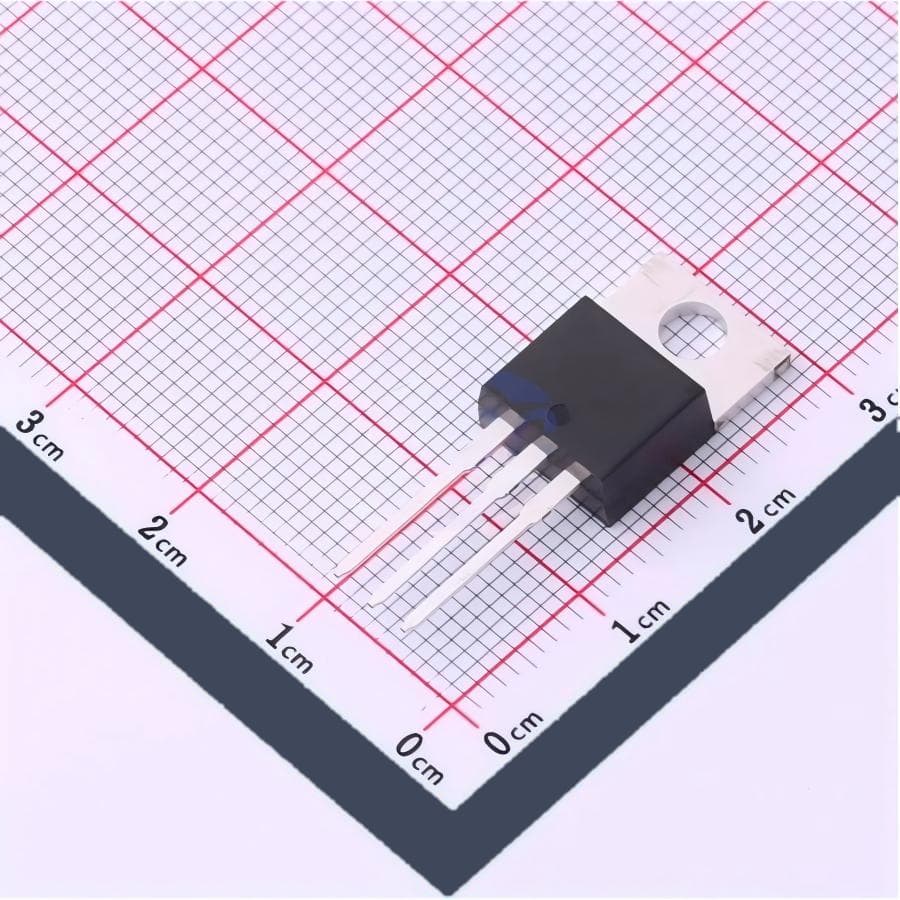

Images are for reference only
Manufacturer
Manufacturer No
SBR40U200CT
Date Code
24+
Quantity
800
Availability
In Stock
Package
TO-220-3
Packaging
Tube
Description
DIODE ARRAY SBR 200V 20A TO220-3
Detailed Description
Diode Array 1 Pair Common Cathode 200 V 20A Through Hole TO-220-3
Datasheet
Payment
Delivery
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Series
SBR®
Packaging
Tube
Technology
Super Barrier
Manufacturer
Diodes Incorporated
Mounting Type
Through Hole
Package / Case
TO-220-3
Base Product Number
SBR40
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
TO-220-3
Reverse Recovery Time (trr)
50 ns
Current - Reverse Leakage @ Vr
200 µA @ 200 V
Voltage - DC Reverse (Vr) (Max)
200 V
Operating Temperature - Junction
-65°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
890 mV @ 20 A
Current - Average Rectified (Io) (per Diode)
20A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Series | SBR® |
| Packaging | Tube |
| Technology | Super Barrier |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Base Product Number | SBR40 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | TO-220-3 |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 200 V |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 890 mV @ 20 A |
| Current - Average Rectified (Io) (per Diode) | 20A |
