Diodes Incorporated DMT12H060LFDF-13

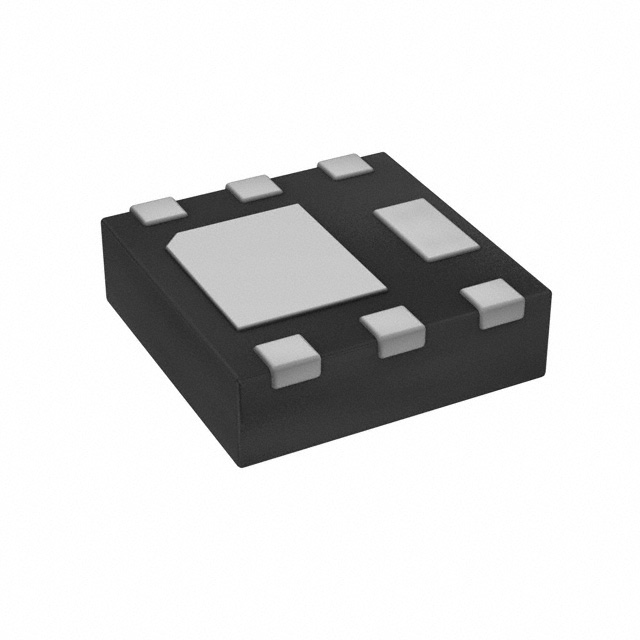

Image is only for reference
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 6-UDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Base Product Number | DMT12 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 3A, 4.5V |
| Power Dissipation (Max) | 1.1W (Ta) |
| Supplier Device Package | U-DFN2020-6 (Type F) |
| Gate Charge (Qg) (Max) @ Vgs | 7.8 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 115 V |
| Input Capacitance (Ciss) (Max) @ Vds | 475 pF @ 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Ta) |
