Step1: Product

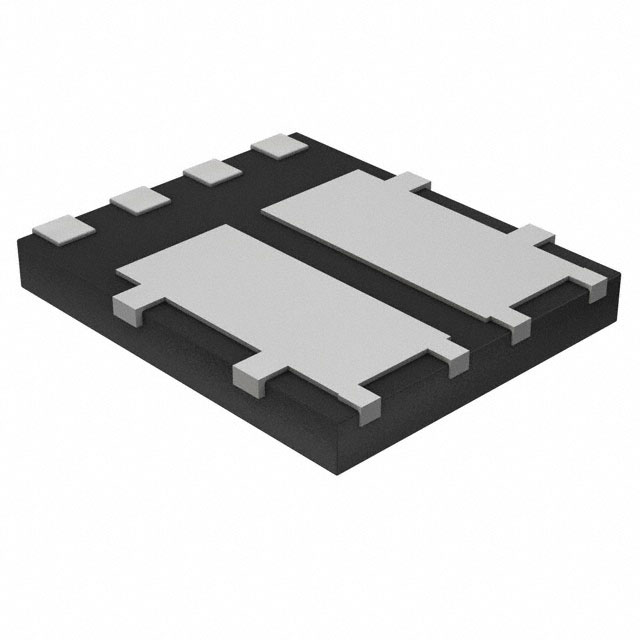

Diodes Incorporated DMPH6050SPDQ-13
Images are for reference only
Manufacturer
Manufacturer No
DMPH6050SPDQ-13
Date Code
2416
Quantity
14,640
Availability
In Stock
Package
8-PowerTDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2P-CH 26A POWERDI5060-8
Detailed Description
Mosfet Array 26A (Tc) Surface Mount PowerDI5060-8
Datasheet
Payment
Delivery
Grade
Automotive
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
-
Manufacturer
Diodes Incorporated
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-PowerTDFN
Vgs(th) (Max) @ Id
3V @ 250µA
Base Product Number
DMPH6050
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
48mOhm @ 5A, 10V
Supplier Device Package
PowerDI5060-8
Gate Charge (Qg) (Max) @ Vgs
14.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds
1525pF @ 30V
Current - Continuous Drain (Id) @ 25°C
26A (Tc)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Base Product Number | DMPH6050 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 5A, 10V |
| Supplier Device Package | PowerDI5060-8 |
| Gate Charge (Qg) (Max) @ Vgs | 14.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1525pF @ 30V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
