Diodes Incorporated DMN2990UFB-7B

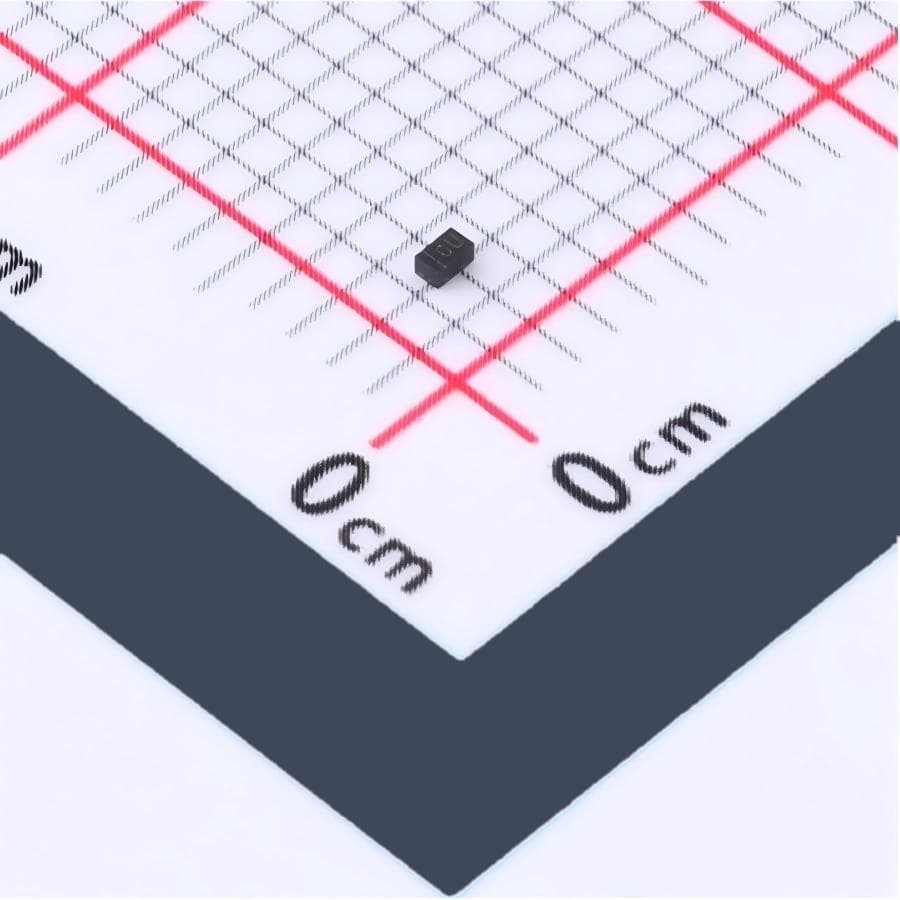

Images are for reference only
Manufacturer
Manufacturer No
DMN2990UFB-7B
Date Code
2410
Quantity
365,108
Availability
In Stock
Package
3-UFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET N-CH 20V 780MA 3DFN
Detailed Description
N-Channel 20 V 780mA (Ta) 520mW (Ta) Surface Mount X1-DFN1006-3
Datasheet
Payment
Delivery
Mfr
Diodes Incorporated
Grade
Automotive
Series
-
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±8V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
3-UFDFN
Vgs(th) (Max) @ Id
1V @ 250A
Base Product Number
DMN2990
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
990mOhm @ 100mA, 4.5V
Power Dissipation (Max)
520mW (Ta)
Supplier Device Package
X1-DFN1006-3
Gate Charge (Qg) (Max) @ Vgs
0.41 nC @ 4.5 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
31 pF @ 15 V
Drive Voltage (Max Rds On, Min Rds On)
1.8V, 4.5V
Current - Continuous Drain (Id) @ 25°C
780mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Grade | Automotive |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 3-UFDFN |
| Vgs(th) (Max) @ Id | 1V @ 250A |
| Base Product Number | DMN2990 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 990mOhm @ 100mA, 4.5V |
| Power Dissipation (Max) | 520mW (Ta) |
| Supplier Device Package | X1-DFN1006-3 |
| Gate Charge (Qg) (Max) @ Vgs | 0.41 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 31 pF @ 15 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 780mA (Ta) |
