Diodes Incorporated DGD2101MS8-13

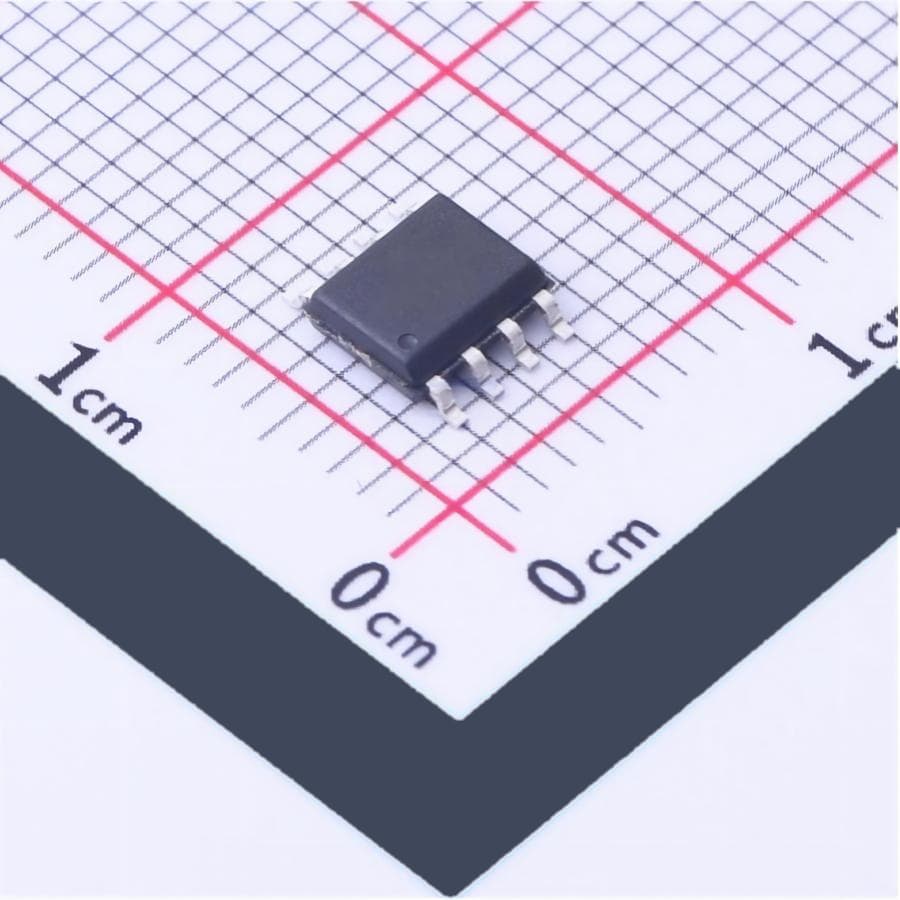

Images are for reference only
Manufacturer
Manufacturer No
DGD2101MS8-13
Date Code
2213
Quantity
7,500
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC GATE DRVR HI/LOW SIDE 8SOIC
Detailed Description
High-Side, Low-Side Gate Driver IC Non-Inverting 8-SO
Datasheet
Payment
Delivery
Series
-
Gate Type
IGBT, MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Non-Inverting
Channel Type
Independent
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Voltage - Supply
10V ~ 20V
Number of Drivers
2
Base Product Number
DGD2101
DigiKey Programmable
Not Verified
Driven Configuration
High-Side, Low-Side
Operating Temperature
-40°C ~ 125°C (TA)
Rise / Fall Time (Typ)
70ns, 35ns
Supplier Device Package
8-SO
Logic Voltage - VIL, VIH
0.8V, 2.5V
High Side Voltage - Max (Bootstrap)
600 V
Current - Peak Output (Source, Sink)
290mA, 600mA
| Attribute | Value |
|---|---|
| Series | - |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Non-Inverting |
| Channel Type | Independent |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Supply | 10V ~ 20V |
| Number of Drivers | 2 |
| Base Product Number | DGD2101 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | High-Side, Low-Side |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Rise / Fall Time (Typ) | 70ns, 35ns |
| Supplier Device Package | 8-SO |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
