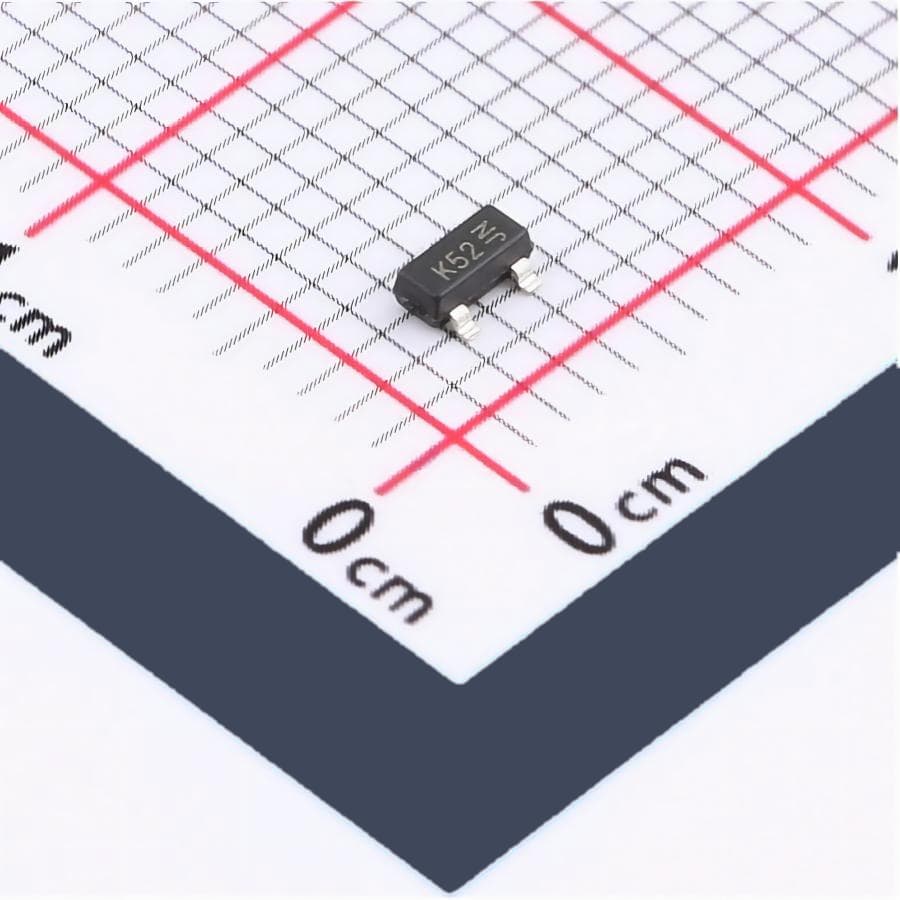

Diodes Incorporated BAV199-7-F
Images are for reference only
Manufacturer
Manufacturer No
BAV199-7-F
Date Code
2324
Quantity
12,465
Availability
In Stock
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DIODE ARRAY GP 85V 140MA SOT23-3
Detailed Description
Diode Array 1 Pair Series Connection 85 V 140mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Datasheet
Payment
Delivery
Speed
Small Signal =< 200mA (Io), Any Speed
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Standard
Manufacturer
Diodes Incorporated
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Base Product Number
BAV199
Diode Configuration
1 Pair Series Connection
Supplier Device Package
SOT-23-3
Reverse Recovery Time (trr)
3 µs
Current - Reverse Leakage @ Vr
5 nA @ 75 V
Voltage - DC Reverse (Vr) (Max)
85 V
Operating Temperature - Junction
-65°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
1.1 V @ 50 mA
Current - Average Rectified (Io) (per Diode)
140mA (DC)
| Attribute | Value |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Standard |
| Manufacturer | Diodes Incorporated |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | BAV199 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | SOT-23-3 |
| Reverse Recovery Time (trr) | 3 µs |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 85 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 50 mA |
| Current - Average Rectified (Io) (per Diode) | 140mA (DC) |
