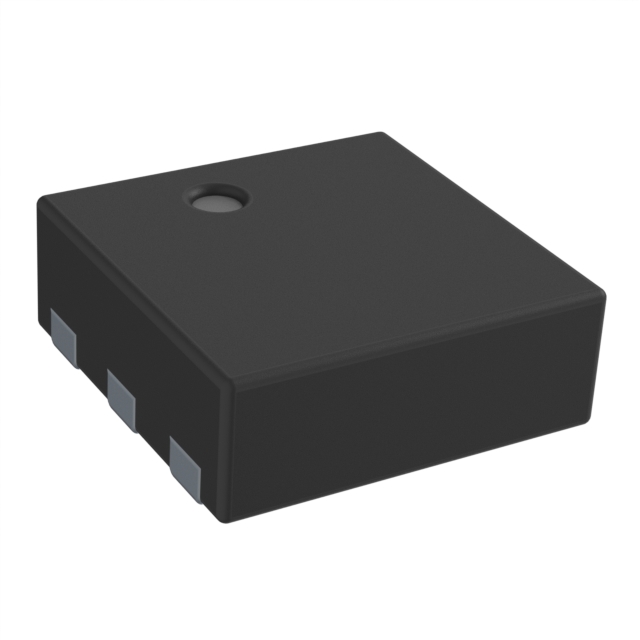

Diodes Incorporated AP22653FDZ-7
Images are for reference only
Manufacturer
Manufacturer No
AP22653FDZ-7
Quantity
7,290
Availability
In Stock
Package
6-WDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LOAD SWITCH,W-DFN2020-6,T&R,3K
Detailed Description
Power Switch/Driver 1:1 P-Channel 2.1A W-DFN2020-6 (Type A1)
Datasheet
Payment
Delivery
Mfr
Diodes Incorporated
Series
-
Features
Load Discharge, Slew Rate Controlled, Status Flag
Interface
On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Non-Inverting
Output Type
P-Channel
Switch Type
General Purpose
Rds On (Typ)
65mOhm
Mounting Type
Surface Mount
Package / Case
6-WDFN Exposed Pad
Voltage - Load
3.5V ~ 5.5V
Fault Protection
Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO
Number of Outputs
1
Base Product Number
AP22653
Output Configuration
High Side
Ratio - Input:Output
1:1
Operating Temperature
-40°C ~ 85°C (TA)
Current - Output (Max)
2.1A
Supplier Device Package
W-DFN2020-6 (Type A1)
Voltage - Supply (Vcc/Vdd)
Not Required
| Attribute | Value |
|---|---|
| Mfr | Diodes Incorporated |
| Series | - |
| Features | Load Discharge, Slew Rate Controlled, Status Flag |
| Interface | On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Non-Inverting |
| Output Type | P-Channel |
| Switch Type | General Purpose |
| Rds On (Typ) | 65mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Voltage - Load | 3.5V ~ 5.5V |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO |
| Number of Outputs | 1 |
| Base Product Number | AP22653 |
| Output Configuration | High Side |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Output (Max) | 2.1A |
| Supplier Device Package | W-DFN2020-6 (Type A1) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
