Step1: Product

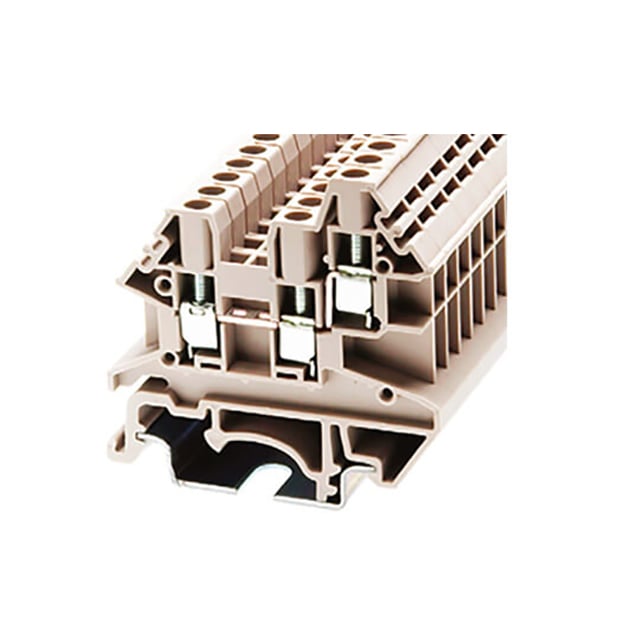

Dinkle Corporation, USA DK2.5N-TN
Images are for reference only
Manufacturer
Manufacturer No
DK2.5N-TN
Packaging
Box
Description
SCREW TERM BLK FEED THROUGH 22~1
Detailed Description
Terminal Block Connector 3 Position Feed Through Gray 12-22 AWG
Datasheet
Payment
Delivery
Type
Feed Through
Color
Gray
Series
DKN
Features
-
Fuse Type
-
Packaging
Box
Current - UL
20 A
Manufacturer
Dinkle Corporation, USA
Voltage - UL
600V
Current - IEC
24 A
Voltage - IEC
1000V
Disconnect Type
-
Number of Levels
1
Stripping Length
9mm ~ 11mm
Terminal - Width
5.1mm
Termination Style
Screw
Base Product Number
DK2.5N
Number of Positions
3
Material - Insulation
Polyamide (PA), Nylon
Wire Gauge or Range - AWG
12-22 AWG
Wire Gauge or Range - mm²
0.14-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Feed Through |
| Color | Gray |
| Series | DKN |
| Features | - |
| Fuse Type | - |
| Packaging | Box |
| Current - UL | 20 A |
| Manufacturer | Dinkle Corporation, USA |
| Voltage - UL | 600V |
| Current - IEC | 24 A |
| Voltage - IEC | 1000V |
| Disconnect Type | - |
| Number of Levels | 1 |
| Stripping Length | 9mm ~ 11mm |
| Terminal - Width | 5.1mm |
| Termination Style | Screw |
| Base Product Number | DK2.5N |
| Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 0.14-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
