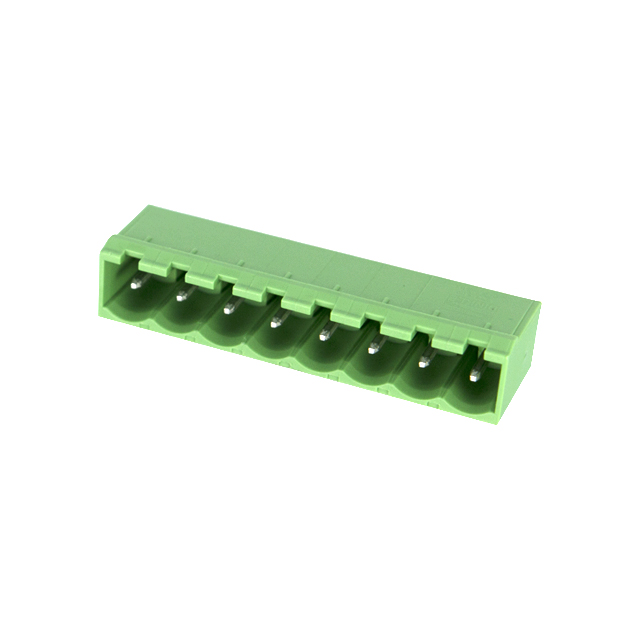

Dinkle Corporation, USA 2EHDRC-08P
Images are for reference only
Manufacturer
Manufacturer No
2EHDRC-08P
Packaging
Bulk
Description
TERM BLOCK HDR 8POS 5.08MM
Detailed Description
8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet
Payment
Delivery
Type
Header, Male Pins, Shrouded (4 Side)
Color
Green
Pitch
0.200" (5.08mm)
Series
2EHDRC
Features
-
Packaging
Bulk
Current - UL
15 A
Manufacturer
Dinkle Corporation, USA
Voltage - UL
300 V
Current - IEC
18A
Mounting Type
Through Hole
Voltage - IEC
630 V
Plug Wire Entry
-
Number of Levels
1
Termination Style
Solder
Header Orientation
90°, Right Angle
Number of Positions
8
Positions Per Level
8
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 120°C
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | 2EHDRC |
| Features | - |
| Packaging | Bulk |
| Current - UL | 15 A |
| Manufacturer | Dinkle Corporation, USA |
| Voltage - UL | 300 V |
| Current - IEC | 18A |
| Mounting Type | Through Hole |
| Voltage - IEC | 630 V |
| Plug Wire Entry | - |
| Number of Levels | 1 |
| Termination Style | Solder |
| Header Orientation | 90°, Right Angle |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 120°C |
