Step1: Product
DigiKey 316-43-151-41-003000

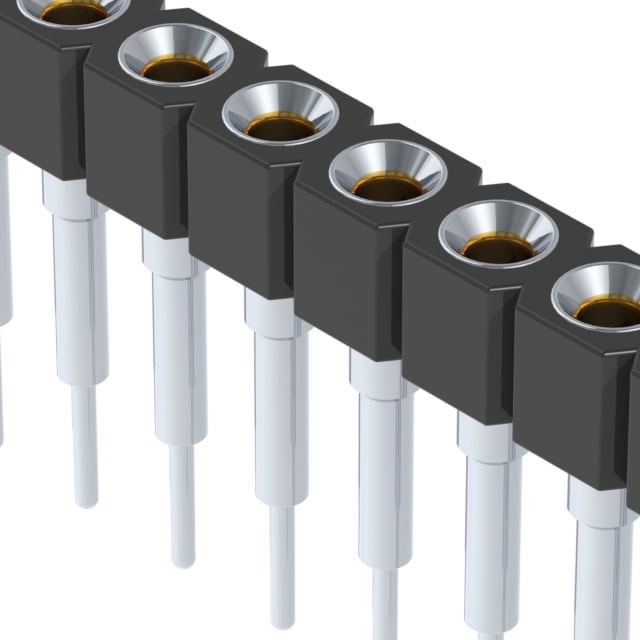

Images are for reference only
Manufacturer
Manufacturer No
316-43-151-41-003000
Packaging
Bulk
Description
CONN SOCKET 51POS 0.1 GOLD PCB
Detailed Description
51 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
Payment
Delivery
Mfr
DigiKey
Style
Board to Board
Series
316
Features
-
Packaging
Bulk
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Elevated Socket
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.315" (8.00mm)
Ingress Protection
-
Base Product Number
316-43
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Number of Positions
51
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | DigiKey |
| Style | Board to Board |
| Series | 316 |
| Features | - |
| Packaging | Bulk |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Elevated Socket |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.315" (8.00mm) |
| Ingress Protection | - |
| Base Product Number | 316-43 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Number of Positions | 51 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
