Step1: Product

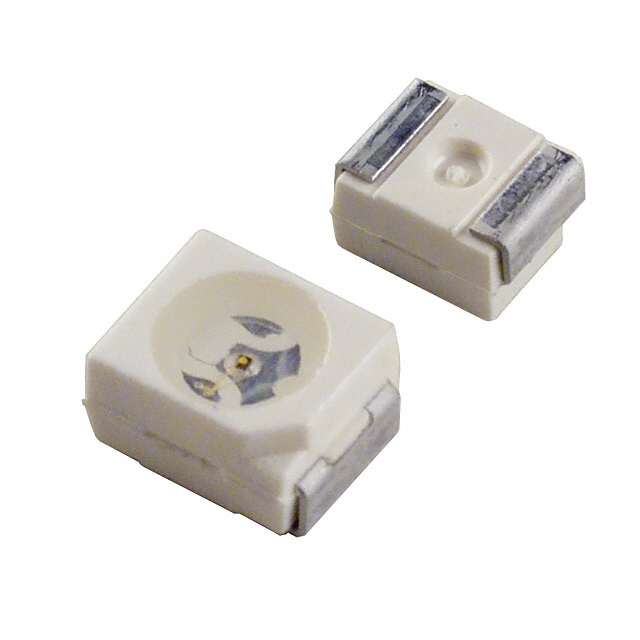

Dialight 5973008207F
Images are for reference only
Manufacturer
Manufacturer No
5973008207F
Quantity
24
Availability
In Stock
Package
2-PLCC
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RED CLEAR 2PLCC SMD
Detailed Description
Red 630nm LED Indication - Discrete 1.8V 2-PLCC
Datasheet
Payment
Delivery
Mfr
Dialight
Color
Red
Series
597
Features
-
Lens Size
2.41mm Dia
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
Colorless
Lens Style
Round with Flat Top
Height (Max)
2.11mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
2mA
Package / Case
2-PLCC
Size / Dimension
3.20mm L x 2.80mm W
Lens Transparency
Clear
Wavelength - Peak
643nm
Base Product Number
5973008
Millicandela Rating
12.6mcd
Wavelength - Dominant
630nm
Supplier Device Package
2-PLCC
Voltage - Forward (Vf) (Typ)
1.8V
| Attribute | Value |
|---|---|
| Mfr | Dialight |
| Color | Red |
| Series | 597 |
| Features | - |
| Lens Size | 2.41mm Dia |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | Colorless |
| Lens Style | Round with Flat Top |
| Height (Max) | 2.11mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 2mA |
| Package / Case | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 643nm |
| Base Product Number | 5973008 |
| Millicandela Rating | 12.6mcd |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 2-PLCC |
| Voltage - Forward (Vf) (Typ) | 1.8V |
