Step1: Product

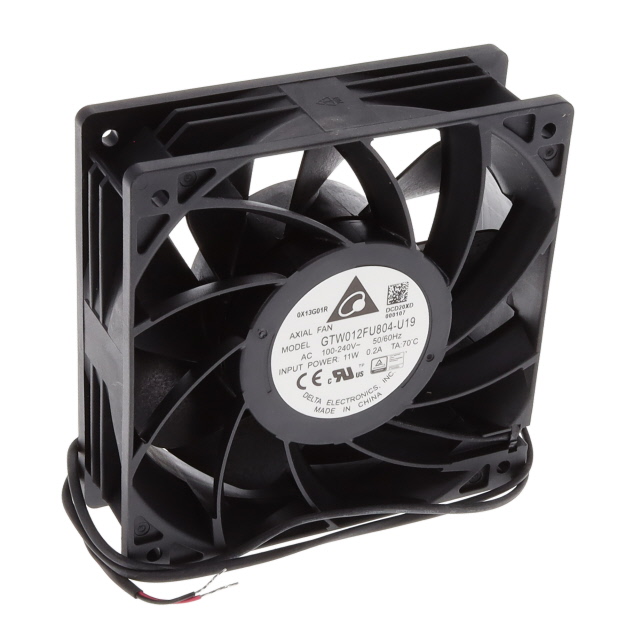

Delta Electronics GTW012FU804
Images are for reference only
Manufacturer
Manufacturer No
GTW012FU804
Packaging
Box
Description
120X120X38MM 100 /240V AC FAN W/
Detailed Description
Fan Tubeaxial 220VAC Square - 120mm L x 120mm H Ball 145.0 CFM (4.06m³/min) 5 Wire Leads
Datasheet
Payment
Delivery
RPM
4200 RPM
Noise
54.9dB(A)
Width
38.00mm
Series
GTW
Weight
-
Air Flow
145.0 CFM (4.06m³/min)
Fan Type
Tubeaxial
Features
Electronic Commutation (EC), Locked Rotor Sensor, PWM Control
Packaging
Box
Termination
5 Wire Leads
Bearing Type
Ball
Manufacturer
Delta Electronics
Power (Watts)
11.00W
Voltage Range
100 ~ 240VAC
Approval Agency
cURus, TUV
Static Pressure
0.450 in H2O (112.1 Pa)
Voltage - Rated
220VAC
Lifetime @ Temp.
60000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 120mm L x 120mm H
Ingress Protection
IP54 - Dust Protected, Water Resistant
Base Product Number
GTW012
Current Rating (Amps)
-
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 4200 RPM |
| Noise | 54.9dB(A) |
| Width | 38.00mm |
| Series | GTW |
| Weight | - |
| Air Flow | 145.0 CFM (4.06m³/min) |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Locked Rotor Sensor, PWM Control |
| Packaging | Box |
| Termination | 5 Wire Leads |
| Bearing Type | Ball |
| Manufacturer | Delta Electronics |
| Power (Watts) | 11.00W |
| Voltage Range | 100 ~ 240VAC |
| Approval Agency | cURus, TUV |
| Static Pressure | 0.450 in H2O (112.1 Pa) |
| Voltage - Rated | 220VAC |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 120mm L x 120mm H |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Base Product Number | GTW012 |
| Current Rating (Amps) | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
