Step1: Product
Delta Electronics/Cyntec MUN12AD03-SEC

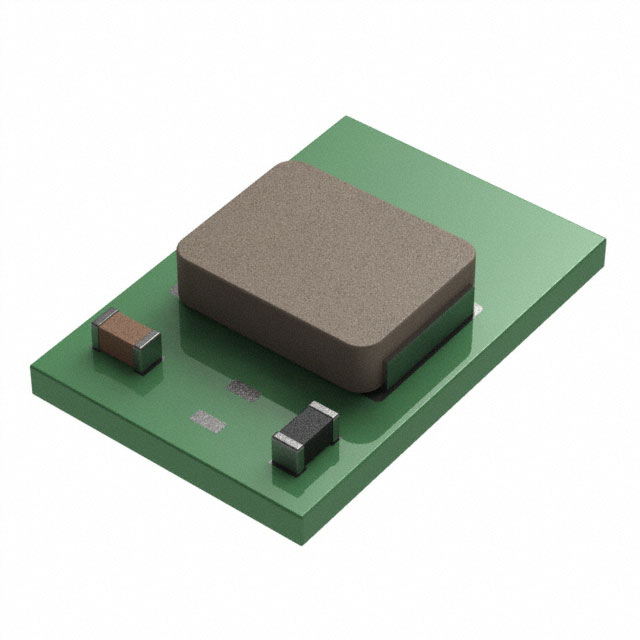

Images are for reference only
Manufacturer
Manufacturer No
MUN12AD03-SEC
Date Code
22+
Quantity
500
Availability
In Stock
Package
8-LDFN Exposed Pad Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DC DC CONVERTER 0.8-5.5V
Detailed Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 3A 4.5V - 17V Input
Datasheet
Payment
Delivery
Mfr
Delta Electronics/Cyntec
Type
Non-Isolated PoL Module
Series
-
Features
Adjustable Output, Remote On/Off
Packaging
Tape & Reel (TR); Cut Tape (CT)
Efficiency
91%
Applications
ITE (Commercial)
Mounting Type
Surface Mount
Package / Case
8-LDFN Exposed Pad Module
Approval Agency
-
Standard Number
-
Control Features
Enable, Active High
Size / Dimension
0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm)
Number of Outputs
1
Voltage - Output 1
0.8 ~ 5.5V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Operating Temperature
-40°C ~ 125°C (With Derating)
Voltage - Input (Max)
17V
Voltage - Input (Min)
4.5V
Current - Output (Max)
3A
Supplier Device Package
8-DFN (3x2.8)
| Attribute | Value |
|---|---|
| Mfr | Delta Electronics/Cyntec |
| Type | Non-Isolated PoL Module |
| Series | - |
| Features | Adjustable Output, Remote On/Off |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Efficiency | 91% |
| Applications | ITE (Commercial) |
| Mounting Type | Surface Mount |
| Package / Case | 8-LDFN Exposed Pad Module |
| Approval Agency | - |
| Standard Number | - |
| Control Features | Enable, Active High |
| Size / Dimension | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 0.8 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Voltage - Input (Max) | 17V |
| Voltage - Input (Min) | 4.5V |
| Current - Output (Max) | 3A |
| Supplier Device Package | 8-DFN (3x2.8) |
