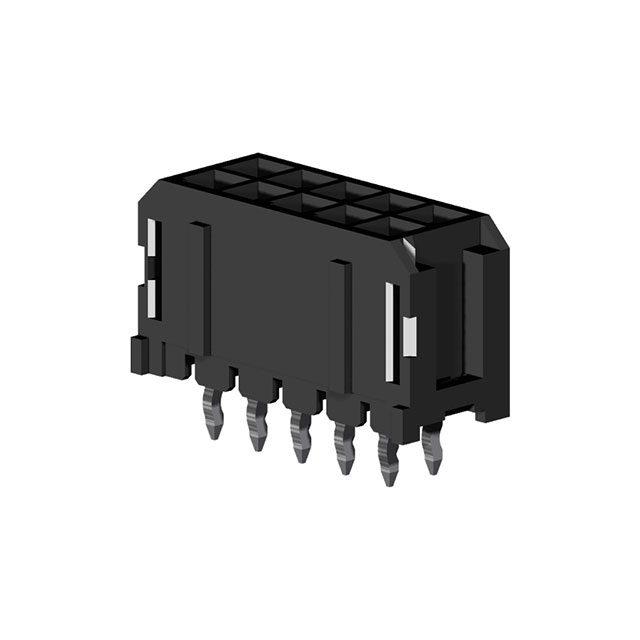

Cvilux USA CP3506P1V00-NH
Images are for reference only
Manufacturer
Manufacturer No
CP3506P1V00-NH
Packaging
Tray
Description
6 POS 3.00MM(.118) DUAL ROWS VER
Detailed Description
Connector Header Through Hole 6 position 0.118" (3.00mm)
Datasheet
Payment
Delivery
Mfr
Cvilux USA
Style
Board to Cable/Wire
Series
CP35
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Plug
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
600VAC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.390" (9.91mm)
Ingress Protection
-
Base Product Number
CP3506P1
Insulation Material
Plastic, Halogen Free
Number of Positions
6
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
7A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Cvilux USA |
| Style | Board to Cable/Wire |
| Series | CP35 |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Plug |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.118" (3.00mm) |
| Voltage Rating | 600VAC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.390" (9.91mm) |
| Ingress Protection | - |
| Base Product Number | CP3506P1 |
| Insulation Material | Plastic, Halogen Free |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 7A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
