Step1: Product
Cvilux USA CI4404M1VR0-NH

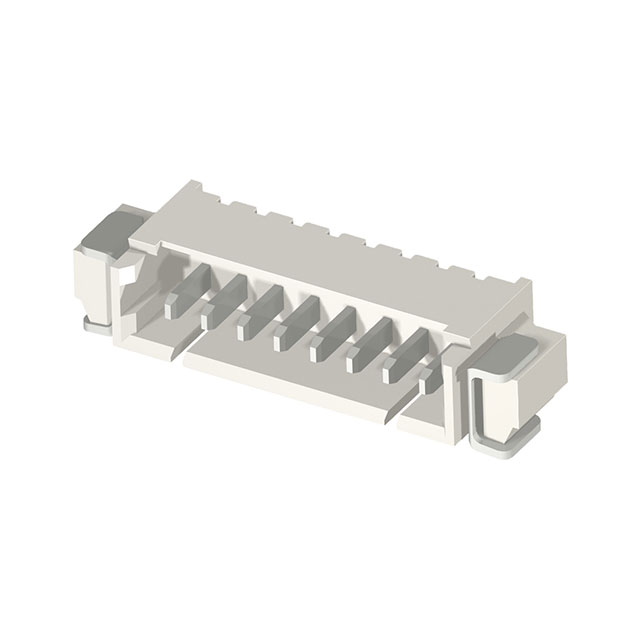

Images are for reference only
Manufacturer
Manufacturer No
CI4404M1VR0-NH
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
4 POS 1.25MM(.049) WIRE TO BOARD
Detailed Description
Connector Header Surface Mount 4 position 0.049" (1.25mm)
Datasheet
Payment
Delivery
Mfr
Cvilux USA
Style
Board to Cable/Wire
Series
CI44
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 3 Wall
Termination
Solder
Applications
-
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
125VAC
Contact Material
Phosphor Bronze
Insulation Color
Natural
Insulation Height
0.189" (4.80mm)
Ingress Protection
-
Base Product Number
CI4404M1
Insulation Material
Polyamide (PA6T), Nylon 6T, Halogen Free
Number of Positions
4
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Cvilux USA |
| Style | Board to Cable/Wire |
| Series | CI44 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 125VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Insulation Height | 0.189" (4.80mm) |
| Ingress Protection | - |
| Base Product Number | CI4404M1 |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Halogen Free |
| Number of Positions | 4 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
